Page 1328 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

HSK

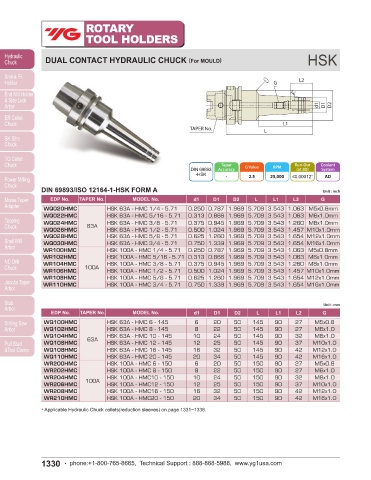

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : OPEN TYPE)

G L2
3° D1 d D2

d1 D1 D2
L2
L
L1
TAPER No. L

Taper Run-Out Coolant
DIN 69893 Accuracy G Value RPM (at 3D) System Hydraulic Chuck collet
-HSK - 2.5 25,000 ≤0.00012" AD

DIN 69893/ISO 12164-1-HSK FORM A Unit : inch METRIC / INCH Unit : inch
EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G EDP No. TYPE d D1 D2 L L2
WQ020HMC HSK 63A - HMC 1/4 - 5.71 0.250 0.787 1.969 5.709 3.543 1.063 M5x0.8mm 412108 1/8" 0.125 0.472 0.748 1.850 0.079
WQ022HMC HSK 63A - HMC 5/16 - 5.71 0.313 0.866 1.969 5.709 3.543 1.063 M6x1.0mm 412316 HK12 3/16" 0.188 0.472 0.748 1.850 0.079
WQ024HMC 63A HSK 63A - HMC 3/8 - 5.71 0.375 0.945 1.969 5.709 3.543 1.260 M8x1.0mm 412104 1/4" 0.250 0.472 0.748 1.850 0.079
WQ026HMC HSK 63A - HMC 1/2 - 5.71 0.500 1.024 1.969 5.709 3.543 1.457 M10x1.0mm 412516 5/16" 0.313 0.472 0.748 1.850 0.079
WQ028HMC HSK 63A - HMC 5/8 - 5.71 0.625 1.260 1.969 5.709 3.543 1.654 M12x1.0mm 420108 1/8" 0.125 0.787 1.063 2.067 0.079
WQ030HMC HSK 63A - HMC 3/4 - 5.71 0.750 1.339 1.969 5.709 3.543 1.654 M16x1.0mm 420316 3/16" 0.188 0.787 1.063 2.067 0.079
WR100HMC HSK 100A - HMC 1/4 - 5.71 0.250 0.787 1.969 5.709 3.543 1.063 M5x0.8mm 420104 1/4" 0.250 0.787 1.063 2.067 0.079
WR102HMC HSK 100A - HMC 5/16 - 5.71 0.313 0.866 1.969 5.709 3.543 1.063 M6x1.0mm 420516 HK20 5/16" 0.313 0.787 1.063 2.067 0.079
WR104HMC HSK 100A - HMC 3/8 - 5.71 0.375 0.945 1.969 5.709 3.543 1.260 M8x1.0mm 420308 3/8" 0.375 0.787 1.063 2.067 0.079
WR106HMC 100A HSK 100A - HMC 1/2 - 5.71 0.500 1.024 1.969 5.709 3.543 1.457 M10x1.0mm 420102 1/2" 0.500 0.787 1.063 2.067 0.079
WR108HMC HSK 100A - HMC 5/8 - 5.71 0.625 1.260 1.969 5.709 3.543 1.654 M12x1.0mm 420508 5/8" 0.625 0.787 1.063 2.067 0.079
WR110HMC HSK 100A - HMC 3/4 - 5.71 0.750 1.339 1.969 5.709 3.543 1.654 M16x1.0mm 432108 1/8" 0.125 1.260 1.535 2.500 0.118
432316 3/16" 0.188 1.260 1.535 2.500 0.118
432104 1/4" 0.250 1.260 1.535 2.500 0.118
Unit : mm 432516 5/16" 0.313 1.260 1.535 2.500 0.118
EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G 432308 HK32 3/8" 0.375 1.260 1.535 2.500 0.118
WQ100HMC HSK 63A - HMC 6 - 145 6 20 50 145 90 27 M5x0.8 432102 1/2" 0.500 1.260 1.535 2.500 0.118
WQ102HMC HSK 63A - HMC 8 - 145 8 22 50 145 90 27 M6x1.0 432508 5/8" 0.625 1.260 1.535 2.500 0.118
WQ104HMC HSK 63A - HMC 10 - 145 10 24 50 145 90 32 M8x1.0 432304 3/4" 0.750 1.260 1.535 2.500 0.118
WQ106HMC 63A HSK 63A - HMC 12 - 145 12 25 50 145 90 37 M10x1.0 432100 1 1.000 1.260 1.535 2.500 0.118
WQ108HMC HSK 63A - HMC 16 - 145 16 32 50 145 90 42 M12x1.0 * Other special sizes of Hydraulic Chuck collets can be supplied on request.
WQ110HMC HSK 63A - HMC 20 - 145 20 34 50 145 90 42 M16x1.0
WR200HMC HSK 100A - HMC 6 - 150 6 20 50 150 90 27 M5x0.8
WR202HMC HSK 100A - HMC 8 - 150 8 22 50 150 90 27 M6x1.0
WR204HMC 100A HSK 100A - HMC10 - 150 10 24 50 150 90 32 M8x1.0
WR206HMC HSK 100A - HMC12 - 150 12 25 50 150 90 37 M10x1.0 Feature Hydraulic Chuck collet(reduction sleeve) is cut into trisection by high precision cutting to
WR208HMC HSK 100A - HMC16 - 150 16 32 50 150 90 42 M12x1.0 guarantee precise I.D and strong clamping power.
WR210HMC HSK 100A - HMC20 - 150 20 34 50 150 90 42 M16x1.0 Chucking Method Please assemble cutting tool with collet first, and then insert collet into Hydraulic Chuck.
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.

1330 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1331
