Page 1363 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

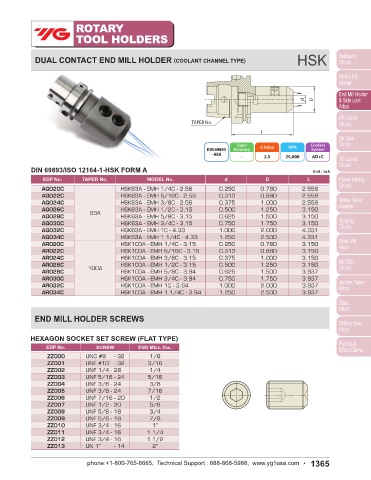

DUAL CONTACT SIDE LOCK ARBOR CBT DUAL CONTACT END MILL HOLDER (COOLANT CHANNEL TYPE) HSK

FIG.1

d d D D d D

TAPER No. L L TAPER No.
TAPER No.
L
FIG.2
Taper G Value RPM Coolant
DIN 69893 Accuracy System
- HSK - 2.5 25,000 AD+C
d d D D
DIN 69893/ISO 12164-1-HSK FORM A Unit : inch
EDP No. TAPER No. MODEL No. d D L
TAPER No. L L
TAPER No.
AQ020C HSK63A - EMH 1/4C - 2.56 0.250 0.780 2.559
AQ022C HSK63A - EMH 5/16C - 2.56 0.313 0.880 2.559
Taper G Value RPM Coolant AQ024C HSK63A - EMH 3/8C - 2.56 0.375 1.000 2.559
Accuracy System
CBT AQ026C HSK63A - EMH 1/2C - 3.15 0.500 1.250 3.150
AT3 2.5 25,000 AD 63A
AQ028C HSK63A - EMH 5/8C - 3.15 0.625 1.500 3.150
CBT (BT DUAL CONTACT) Unit : inch AQ030C HSK63A - EMH 3/4C - 3.15 0.750 1.750 3.150
EDP No. TAPER No. MODEL No. d D L FIG. AQ032C HSK63A - EMH 1C - 4.33 1.000 2.000 4.331
4.331
AQ034C
1.250
HSK63A - EMH 1 1/4C - 4.33
2.500
AD020 CBT30 - SLA 1/4 - 2.36 0.250 0.780 2.362 1 AR020C HSK100A - EMH 1/4C - 3.15 0.250 0.780 3.150
AD022 CBT30 - SLA 5/16 - 2.36 0.313 0.880 2.362 1 AR022C HSK100A - EMH 5/16C - 3.15 0.313 0.880 3.150
AD024 CBT30 - SLA 3/8 - 2.36 0.375 1.000 2.362 1 AR024C HSK100A - EMH 3/8C - 3.15 0.375 1.000 3.150
AD026 30 CBT30 - SLA 1/2 - 2.36 0.500 1.250 2.362 1 AR026C 100A HSK100A - EMH 1/2C - 3.15 0.500 1.250 3.150
AD028 CBT30 - SLA 5/8 - 2.95 0.625 1.500 2.953 1 AR028C HSK100A - EMH 5/8C - 3.94 0.625 1.500 3.937
AD030 CBT30 - SLA 3/4 - 2.95 0.750 1.750 2.953 2 AR030C HSK100A - EMH 3/4C - 3.94 0.750 1.750 3.937
AD032 CBT30 - SLA 1" - 2.95 1.000 2.000 2.953 2 AR032C HSK100A - EMH 1C - 3.94 1.000 2.000 3.937
AE020 CBT40 - SLA 1/4 - 2.36 0.250 0.780 2.362 1 AR034C HSK100A - EMH 1 1/4C - 3.94 1.250 2.500 3.937
AE022 CBT40 - SLA 5/16 - 2.36 0.313 0.880 2.362 1
AE024 CBT40 - SLA 3/8 - 2.36 0.375 1.000 2.362 1
AE026 40 CBT40 - SLA 1/2 - 2.36 0.500 1.250 2.362 1
AE028 CBT40 - SLA 5/8 - 3.54 0.625 1.500 3.543 1 END MILL HOLDER SCREWS
AE030 CBT40 - SLA 3/4 - 3.54 0.750 1.750 3.543 1
AE032 CBT40 - SLA 1" - 3.54 1.000 2.000 3.543 2
AE034 CBT40 - SLA 1 1/4 - 3.54 1.250 2.500 3.543 2 HEXAGON SOCKET SET SCREW (FLAT TYPE)
EDP No. SCREW END MILL Dia.
* Set screws for End Mill Holders on page 1365.
ZZ000 UNC #8 - 32 1/8
ZZ001 UNF #10 - 32 3/16
ZZ002 UNF 1/4 - 28 1/4
ZZ003 UNF 5/16 - 24 5/16
ZZ004 UNF 3/8 - 24 3/8
ZZ005 UNF 3/8 - 24 7/16
ZZ006 UNF 7/16 - 20 1/2
ZZ007 UNF 1/2 - 20 5/8
ZZ008 UNF 5/8 - 18 3/4
ZZ009 UNF 5/8 - 18 7/8
ZZ010 UNF 3/4 - 16 1”
ZZ011 UNF 3/4 - 16 1 1/4
ZZ012 UNF 3/4 - 16 1 1/2
ZZ013 UN 1" - 14 2”

1364 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1365
