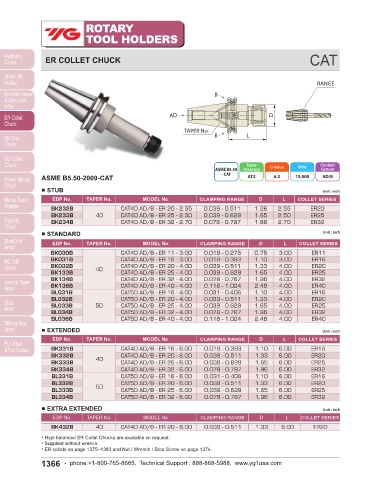

ER COLLET CHUCK CAT HIGH BALANCED ER COLLET CHUCK CAT

RANGE NUT

B

D
AD D

TAPER No.
B L TAPER No. L

Taper Coolant Taper Coolant
ASME B5.50 Accuracy G Value RPM System ASME B5.50 Accuracy G Value RPM System
ASME B5.50-2009-CAT - CAT AT3 6.3 15,000 AD/B ASME B5.50-2009-CAT - CAT AT3 2.5 25,000 AD
STUB Unit : inch STUB Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BK232B CAT40 AD/B - ER 20 - 2.55 0.039 - 0.511 1.26 2.55 ER20 BK232B25 CAT40 - ER 20 - 2.55 0.039 - 0.511 1.339 2.55 ER20
BK233B 40 CAT40 AD/B - ER 25 - 2.50 0.039 - 0.629 1.65 2.50 ER25 BK233B25 40 CAT40 - ER 25 - 2.50 0.039 - 0.629 1.654 2.50 ER25
BK234B CAT40 AD/B - ER 32 - 2.70 0.078 - 0.787 1.88 2.70 ER32 BK234B25 CAT40 - ER 32 - 2.70 0.078 - 0.787 1.969 2.70 ER32
STANDARD Unit : inch STANDARD Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BK030B CAT40 AD/B - ER 11 - 3.00 0.019 - 0.275 0.75 3.00 ER11 BK030B25 CAT40 - ER 11 - 3.00 0.019 - 0.275 0.748 3.00 ER11
BK031B CAT40 AD/B - ER 16 - 3.00 0.019 - 0.393 1.10 3.00 ER16 BK031B25 CAT40 - ER 16 - 2.88 0.019 - 0.393 1.102 2.88 ER16
BK032B CAT40 AD/B - ER 20 - 4.00 0.039 - 0.511 1.33 4.00 ER20 BK032B25 40 CAT40 - ER 20 - 4.00 0.039 - 0.511 1.339 4.00 ER20
BK133B 40 CAT40 AD/B - ER 25 - 4.00 0.039 - 0.629 1.65 4.00 ER25 BK133B25 CAT40 - ER 25 - 4.00 0.039 - 0.629 1.654 4.00 ER25
BK134B CAT40 AD/B - ER 32 - 4.00 0.078 - 0.787 1.96 4.00 ER32 BK134B25 CAT40 - ER 32 - 4.00 0.078 - 0.787 1.969 4.00 ER32
BK136B CAT40 AD/B - ER 40 - 4.00 0.118 - 1.024 2.48 4.00 ER40 BL031B25
BL031B CAT50 AD/B - ER 16 - 4.00 0.031 - 0.406 1.10 4.00 ER16 CAT50 - ER 16 - 4.00 1/32 - 13/32 1.102 4.88 ER16
BL032B CAT50 AD/B - ER 20 - 4.00 0.039 - 0.511 1.33 4.00 ER20 BL032B25 50 CAT50 - ER 20 - 4.00 0.039 - 0.511 1.339 4.00 ER20
BL033B 50 CAT50 AD/B - ER 25 - 4.00 0.039 - 0.629 1.65 4.00 ER25 BL033B25 CAT50 - ER 25 - 4.00 0.039 - 0.629 1.654 4.00 ER25
BL034B CAT50 AD/B - ER 32 - 4.00 0.078 - 0.787 1.96 4.00 ER32 BL034B25 CAT50 - ER 32 - 4.00 0.078 - 0.787 1.969 4.00 ER32
BL036B CAT50 AD/B - ER 40 - 4.00 0.118 - 1.024 2.48 4.00 ER40
EXTENDED Unit : inch
EXTENDED Unit : inch EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES BK331B25 CAT40 - ER 16 - 4.88 0.019 - 0.393 1.102 4.88 ER16
BK331B CAT40 AD/B - ER 16 - 6.00 0.019 - 0.393 1.10 6.00 ER16 BK332B25 CAT40 - ER 20 - 6.00 0.039 - 0.511 1.339 6.00 ER20
BK332B 40 CAT40 AD/B - ER 20 - 6.00 0.039 - 0.511 1.33 6.00 ER20 BK333B25 40 CAT40 - ER 25 - 6.00 0.039 - 0.629 1.654 6.00 ER25
BK333B CAT40 AD/B - ER 25 - 6.00 0.039 - 0.629 1.65 6.00 ER25 BK334B25 CAT40 - ER 32 - 6.00 0.078 - 0.787 1.969 6.00 ER32
BK334B CAT40 AD/B - ER 32 - 6.00 0.078 - 0.787 1.96 6.00 ER32 BL331B25 CAT50 - ER 16 - 6.88 1/32 - 13/32 1.102 6.88 ER16
BL331B CAT50 AD/B - ER 16 - 6.00 0.031 - 0.406 1.10 6.00 ER16 BL332B25 50 CAT50 - ER 20 - 6.00 0.039 - 0.511 1.339 6.00 ER20
BL332B CAT50 AD/B - ER 20 - 6.00 0.039 - 0.511 1.33 6.00 ER20 BL333B25 CAT50 - ER 25 - 6.00 0.039 - 0.629 1.654 6.00 ER25
BL333B 50 CAT50 AD/B - ER 25 - 6.00 0.039 - 0.629 1.65 6.00 ER25 BL334B25 CAT50 - ER 32 - 6.00 0.078 - 0.787 1.969 6.00 ER32
BL334B CAT50 AD/B - ER 32 - 6.00 0.078 - 0.787 1.96 6.00 ER32
EXTRA EXTENDED
EXTRA EXTENDED Unit : inch Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BK432B25 40 CAT40 - ER 20 - 8.00 0.039 - 0.511 1.339 8.00 ER20
BK432B 40 CAT40 AD/B - ER 20 - 8.00 0.039 - 0.511 1.33 8.00 ER20
* High balanced ER Collet Chucks are available on request. * Supplied without wrench.
* Supplied without wrench. * ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
* ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
