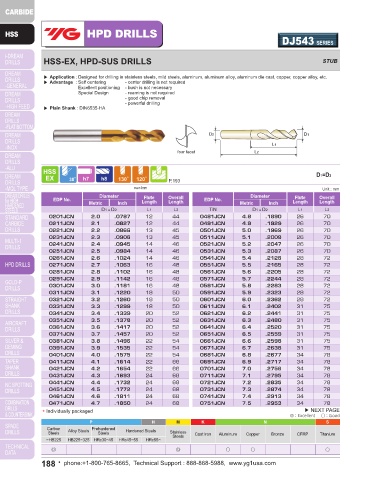

HPD DRILLS HPD DRILLS

DJ543 SERIES DJ543 SERIES

HSS-EX, HPD-SUS DRILLS STUB HSS-EX, HPD-SUS DRILLS STUB

▶ Application : Designed for drilling in stainless steels, mild steels, aluminum, aluminum alloy, aluminum die cast, copper, copper alloy, etc. ▶ Application : Designed for drilling in stainless steels, mild steels, aluminum, aluminum alloy, aluminum die cast, copper, copper alloy, etc.
▶ Advantage : Self centering - center drilling is not required ▶ Advantage : Self centering - center drilling is not required
Excellent positioning - bush is not necessary Excellent positioning - bush is not necessary
Special Design - reaming is not required Special Design - reaming is not required
- good chip removal - good chip removal
- powerful drilling - powerful drilling
▶ Plain Shank : DIN6535-HA ▶ Plain Shank : DIN6535-HA

D2 D1 D2 D1
L1 L1
four facet L2 four facet L2

D1=D2 D1=D2
130 120 P.193 130 120 P.193
over 4mm Unit : mm up to 4mm over 4mm Unit : mm
Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall
EDP No. EDP No. EDP No. EDP No.
Metric Inch Length Length Metric Inch Length Length Metric Inch Length Length Metric Inch Length Length
D1 = D2 L1 L2 TiN D1 = D2 L1 L2 TiN D1 = D2 L1 L2 TiN D1 = D2 L1 L2
0201JCN 2.0 .0787 12 44 0481JCN 4.8 .1890 26 70 0761JCN 7.6 .2992 37 81 1041JCN 10.4 .4094 43 100
0211JCN 2.1 .0827 12 44 0491JCN 4.9 .1929 26 70 0771JCN 7.7 .3031 37 81 1051JCN 10.5 .4134 43 100
0221JCN 2.2 .0866 13 45 0501JCN 5.0 .1969 26 70 0781JCN 7.8 .3071 37 81 1061JCN 10.6 .4173 43 100
0231JCN 2.3 .0906 13 45 0511JCN 5.1 .2008 26 70 0791JCN 7.9 .3110 37 81 1071JCN 10.7 .4212 47 104
0241JCN 2.4 .0945 14 46 0521JCN 5.2 .2047 26 70 0801JCN 8.0 .3150 37 81 1081JCN 10.8 .4252 47 104
0251JCN 2.5 .0984 14 46 0531JCN 5.3 .2087 26 70 0811JCN 8.1 .3189 37 87 1091JCN 10.9 .4291 47 104
0261JCN 2.6 .1024 14 46 0541JCN 5.4 .2126 28 72 0821JCN 8.2 .3228 37 87 1101JCN 11.0 .4330 47 104
0271JCN 2.7 .1063 16 48 0551JCN 5.5 .2165 28 72 0831JCN 8.3 .3268 37 87 1111JCN 11.1 .4370 47 104
0281JCN 2.8 .1102 16 48 0561JCN 5.6 .2205 28 72 0841JCN 8.4 .3307 37 87 1121JCN 11.2 .4409 47 104
0291JCN 2.9 .1142 16 48 0571JCN 5.7 .2244 28 72 0851JCN 8.5 .3346 37 87 1131JCN 11.3 .4448 47 104
0301JCN 3.0 .1181 16 48 0581JCN 5.8 .2283 28 72 0861JCN 8.6 .3386 40 90 1141JCN 11.4 .4488 47 104
0311JCN 3.1 .1220 18 50 0591JCN 5.9 .2323 28 72 0871JCN 8.7 .3425 40 90 1151JCN 11.5 .4527 47 104
0321JCN 3.2 .1260 18 50 0601JCN 6.0 .2362 28 72 0881JCN 8.8 .3465 40 90 1161JCN 11.6 .4566 47 104
0331JCN 3.3 .1299 18 50 0611JCN 6.1 .2402 31 75 0891JCN 8.9 .3504 40 90 1171JCN 11.7 .4606 47 104
0341JCN 3.4 .1339 20 52 0621JCN 6.2 .2441 31 75 0901JCN 9.0 .3543 40 90 1181JCN 11.8 .4645 47 104
0351JCN 3.5 .1378 20 52 0631JCN 6.3 .2480 31 75 0911JCN 9.1 .3583 40 90 1191JCN 11.9 .4685 51 108
0361JCN 3.6 .1417 20 52 0641JCN 6.4 .2520 31 75 0921JCN 9.2 .3622 40 90 1201JCN 12.0 .4724 51 108
0371JCN 3.7 .1457 20 52 0651JCN 6.5 .2559 31 75 0931JCN 9.3 .3661 40 90 1211JCN 12.1 .4764 51 108
0381JCN 3.8 .1496 22 54 0661JCN 6.6 .2598 31 75 0941JCN 9.4 .3701 40 90 1221JCN 12.2 .4803 51 108
0391JCN 3.9 .1535 22 54 0671JCN 6.7 .2638 31 75 0951JCN 9.5 .3740 40 90 1231JCN 12.3 .4843 51 108
0401JCN 4.0 .1575 22 54 0681JCN 6.8 .2677 34 78 0961JCN 9.6 .3780 43 93 1241JCN 12.4 .4882 51 108
0411JCN 4.1 .1614 22 66 0691JCN 6.9 .2717 34 78 0971JCN 9.7 .3819 43 93 1251JCN 12.5 .4921 51 108
0421JCN 4.2 .1654 22 66 0701JCN 7.0 .2756 34 78 0981JCN 9.8 .3858 43 93 1261JCN 12.6 .4961 51 108
0431JCN 4.3 .1693 24 68 0711JCN 7.1 .2795 34 78 0991JCN 9.9 .3898 43 93 1271JCN 12.7 .5000 51 108
0441JCN 4.4 .1732 24 68 0721JCN 7.2 .2835 34 78 1001JCN 10.0 .3937 43 93 1281JCN 12.8 .5039 51 108
0451JCN 4.5 .1772 24 68 0731JCN 7.3 .2874 34 78 1011JCN 10.1 .3976 43 100 1291JCN 12.9 .5079 51 108
0461JCN 4.6 .1811 24 68 0741JCN 7.4 .2913 34 78 1021JCN 10.2 .4016 43 100 1301JCN 13.0 .5118 51 108
0471JCN 4.7 .1850 24 68 0751JCN 7.5 .2953 34 78 1031JCN 10.3 .4055 43 100
* Individually packaged ▶ NEXT PAGE * Individually packaged
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Prehardened Carbon Prehardened
Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
Steels
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ ~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
