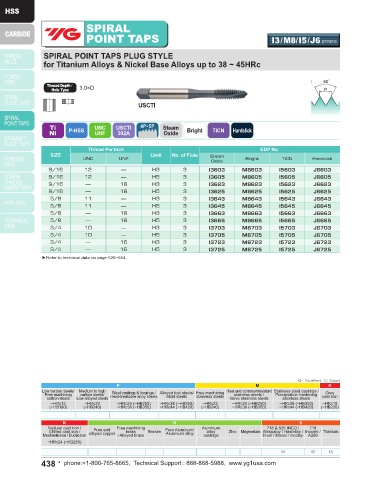

SPIRAL SPIRAL
POINT TAPS I3/M8/I5/J6 SERIES POINT TAPS M0/M1/M2/M3 SERIES

SPIRAL POINT TAPS PLUG STYLE EXTENDED LENGTH SPIRAL POINT TAPS PLUG STYLE
for Titanium Alloys & Nickel Base Alloys up to 38 ~ 45HRc for Stainless Steels

Extended length for greater reach
Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type

USCTI USCTI Long Shank

Ti P-HSS UNC USCTI 4P~5P Steam Bright TiCN Hardslick P-HSS UNC USCTI 4P~5P TiN Hardslick
Ni UNF 302A Oxide VA UNF Long Shank

Thread Per Inch EDP No. Thread Per Inch Maximum EDP No.
SIZE Limit No. of Flute Steam SIZE Limit No. of Tapping TiN TiN Hardslick Hardslick
UNC UNF Bright TiCN Hardslick UNC UNF Flute Depth
Oxide 4" OAL 6" OAL 4" OAL 6" OAL
9/16 12 — H3 3 I3603 M8603 I5603 J6603 #4 40 — H2 2 0.844 M0162 — M2162 —
9/16 12 — H5 3 I3605 M8605 I5605 J6605 #6 32 — H3 2 1.031 M0243 M1243 M2243 M3243
9/16 — 18 H3 3 I3623 M8623 I5623 J6623 #8 32 — H3 3 1.125 M0283 M1283 M2283 M3283
9/16 — 18 H5 3 I3625 M8625 I5625 J6625 #10 24 — H3 3 1.312 M0323 M1323 M2323 M3323
5/8 11 — H3 3 I3643 M8643 I5643 J6643 #10 — 32 H3 3 1.312 M0343 M1343 M2343 M3343
5/8 11 — H5 3 I3645 M8645 I5645 J6645 1/4 20 — H3 3 1.500 M0403 M1403 M2403 M3403
5/8 — 18 H3 3 I3663 M8663 I5663 J6663 1/4 — 28 H3 3 1.500 — M1423 — M3423
5/8 — 18 H5 3 I3665 M8665 I5665 J6665 5/16 18 — H3 3 1.688 — M1443 — M3443
3/4 10 — H3 3 I3703 M8703 I5703 J6703 5/16 — 24 H3 3 1.688 — M1463 — M3463
3/4 10 — H5 3 I3705 M8705 I5705 J6705 3/8 16 — H3 3 1.875 — M1483 — M3483
3/4 — 16 H3 3 I3723 M8723 I5723 J6723 3/8 — 24 H3 3 — — M1503 — M3503
3/4 — 16 H5 3 I3725 M8725 I5725 J6725 7/16 14 — H3 3 — — M1523 — M3523
▶Refer to technical data on page 520~554. 7/16 — 20 H3 3 — — M1543 — M3543
1/2 13 — H3 3 — — M1563 — M3563
1/2 — 20 H3 3 — — M1583 — M3583
9/16 12 — H3 3 — — M1603 — M3603
9/16 — 18 H3 3 — — M1623 — M3623
5/8 11 — H3 3 — — M1643 — M3643
▶Refer to technical data on page 520~554.

◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
◎ ◎ ◎ ○ ○ ○ ○ ○
