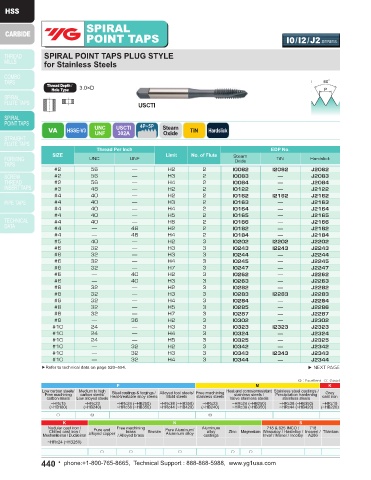

Page 440 - YG 2019

SPIRAL SPIRAL
POINT TAPS I0/I2/J2 SERIES POINT TAPS I0/I2/J2 SERIES

SPIRAL POINT TAPS PLUG STYLE SPIRAL POINT TAPS PLUG STYLE
for Stainless Steels for Stainless Steels

Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type

USCTI USCTI

VA HSSE-V3 UNC USCTI 4P~5P Steam TiN Hardslick VA HSSE-V3 UNC USCTI 4P~5P Steam TiN Hardslick
Oxide
Oxide
UNF
UNF
302A
302A
Thread Per Inch EDP No. Thread Per Inch EDP No.
SIZE Limit No. of Flute Steam SIZE Limit No. of Flute Steam
UNC UNF TiN Hardslick UNC UNF TiN Hardslick
Oxide Oxide
#2 56 — H2 2 I0082 I2082 J2082 #10 — 32 H5 3 I0345 — J2345
#2 56 — H3 2 I0083 — J2083 #10 — 32 H6 3 I0346 — J2346
#2 56 — H4 2 I0084 — J2084 #10 — 32 H7 3 I0347 — J2347
#3 48 — H2 2 I0122 — J2122 #12 24 — H3 3 I0363 — J2363
#4 40 — H2 2 I0162 I2162 J2162 #12 — 28 H3 3 I0383 — J2383
#4 40 — H3 2 I0163 — J2163 1/4 20 — H2 3 I0402 — J2402
#4 40 — H4 2 I0164 — J2164 1/4 20 — H3 3 I0403 I2403 J2403
#4 40 — H5 2 I0165 — J2165 1/4 20 — H5 3 I0405 I2405 J2405
#4 40 — H6 2 I0166 — J2166 1/4 20 — H7 3 I0407 — J2407
#4 — 48 H2 2 I0182 — J2182 1/4 — 28 H2 3 I0422 — J2422
#4 — 48 H4 2 I0184 — J2184 1/4 — 28 H3 3 I0423 I2423 J2423
#5 40 — H2 3 I0202 I2202 J2202 1/4 — 28 H4 3 I0424 — J2424
#6 32 — H3 3 I0243 I2243 J2243 1/4 — 28 H5 3 I0425 — J2425
#6 32 — H3 3 I0244 — J2244 1/4 — 28 H6 3 I0426 — J2426
#6 32 — H4 3 I0245 — J2245 1/4 — 28 H7 3 I0427 — J2427
#6 32 — H7 3 I0247 — J2247 5/16 18 — H3 3 I0443 I2443 J2443
#6 — 40 H2 3 I0262 — J2262 5/16 18 — H5 3 I0445 I2445 J2445
#6 — 40 H3 3 I0263 — J2263 5/16 18 — H7 3 I0447 — J2447
#8 32 — H2 3 I0282 — J2282 5/16 — 24 H3 3 I0463 I2463 J2463
#8 32 — H3 3 I0283 I2283 J2283 5/16 — 24 H4 3 I0464 — J2464
#8 32 — H4 3 I0284 — J2284 5/16 — 24 H5 3 I0465 — J2465
#8 32 — H5 3 I0285 — J2286 5/16 — 24 H6 3 I0466 — J2466
#8 32 — H7 3 I0287 — J2287 5/16 — 24 H7 3 I0467 — J2467
#8 — 36 H2 3 I0302 — J2302 3/8 16 — H3 3 I0483 I2483 J2483
#10 24 — H3 3 I0323 I2323 J2323 3/8 16 — H5 3 I0485 I2485 J2485
#10 24 — H4 3 I0324 — J2324 3/8 16 — H7 3 I0487 — J2487
#10 24 — H5 3 I0325 — J2325 3/8 — 24 H3 3 I0503 I2503 J2503
#10 — 32 H2 3 I0342 — J2342 3/8 — 24 H4 3 I0504 — J2504
#10 — 32 H3 3 I0343 I2343 J2343 3/8 — 24 H5 3 I0505 — J2505
#10 — 32 H4 3 I0344 — J2344 3/8 — 24 H7 3 I0507 — J2507
▶Refer to technical data on page 520~554. ▶ NEXT PAGE ▶Refer to technical data on page 520~554. ▶ NEXT PAGE

◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ◎ ○ ◎ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
○ ○ ○ ○ ○ ○ ○ ○ ○ ○
