SPIRAL SPIRAL

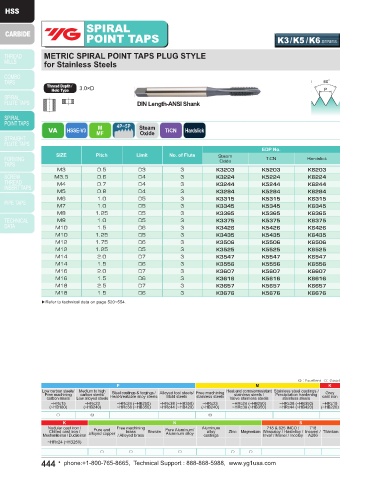

POINT TAPS K3 /K5 /K6 SERIES POINT TAPS J3/J4/J8 SERIES

METRIC SPIRAL POINT TAPS PLUG STYLE SPIRAL POINT TAPS PLUG STYLE for Steels
for Stainless Steels

A variety of H Limit
Thread Depth / 3.0×D Thread Depth /
Hole Type Hole Type 3.0×D
DIN Length-ANSI Shank USCTI

M
VA HSSE-V3 MF 4P~5P Steam TiCN Hardslick VG HSSE-V3 UNC USCTI 4P~5P Steam Bright Hardslick
Oxide
Oxide
UNF
302A
EDP No. Thread Per Inch EDP No.
SIZE Pitch Limit No. of Flute Steam SIZE Limit No. of Flute Steam
Oxide TiCN Hardslick UNC UNF UN Oxide Bright Hardslick
M3 0.5 D3 3 K3203 K5203 K6203 #2 56 — — H2 2 J3082 J4082 J8082
M3.5 0.6 D4 3 K3224 K5224 K6224 #3 48 — — H2 2 J3122 J4122 J8122
M4 0.7 D4 3 K3244 K5244 K6244 #4 40 — — H2 2 J3162 J4162 J8162
#4 40 — — H3 2 J3163 J4163 J8163
M5 0.8 D4 3 K3284 K5284 K6284
M6 1.0 D5 3 K3315 K5315 K6315 #4 40 — — H4 2 J3164 J4164 J8164
J3165
2
#4
40
—
J8165
H5
—
J4165
M7 1.0 D5 3 K3345 K5345 K6345 #4 — 48 — H2 2 J3182 J4182 J8182
M8 1.25 D5 3 K3365 K5365 K6365 #5 40 — — H2 2 J3202 J4202 J8202
M8 1.0 D5 3 K3375 K5375 K6375 #6 32 — — H2 2 J3242 J4242 J8242
M10 1.5 D6 3 K3426 K5426 K6426 #6 32 — — H3 2 J3243 J4243 J8243
M10 1.25 D5 3 K3435 K5435 K6435 #6 32 — — H4 2 J3244 J4244 J8244
M12 1.75 D6 3 K3506 K5506 K6506 #6 32 — — H5 2 J3245 J4245 J8245
M12 1.25 D5 3 K3525 K5525 K6525 #6 32 — — H6 2 J3246 J4246 J8246
M14 2.0 D7 3 K3547 K5547 K6547 #6 32 — — H7 2 J3247 J4247 J8247
#6 32 — — H11 2 J324A J424A J824A
M14 1.5 D6 3 K3556 K5556 K6556
—
M16 2.0 D7 3 K3607 K5607 K6607 #6 32 40 — H2 2 J3262 J4262 J8262
J4282
#8
—
J3282
3
H2
—
J8282
M16 1.5 D6 3 K3616 K5616 K6616 #8 32 — — H3 3 J3283 J4283 J8283
M18 2.5 D7 3 K3657 K5657 K6657 #8 32 — — H4 3 J3284 J4284 J8284
M18 1.5 D6 3 K3676 K5676 K6676 #8 32 — — H5 3 J3285 J4285 J8285
▶Refer to technical data on page 520~554. #8 32 — — H6 3 J3286 J4286 J8286
#8 32 — — H7 3 J3287 J4287 J8287
#8 32 — — H11 3 J328A J428A J828A
#8 — 36 — H2 3 J3302 J4302 J8302
#10 24 — — H3 3 J3323 J4323 J8323
#10 24 — — H5 3 J3325 J4325 J8325
#10 24 — — H11 3 J332A J432A J832A
#10 — 32 — H2 3 J3342 J4342 J8342
#10 — 32 — H3 3 J3343 J4343 J8343
#10 — 32 — H4 3 J3344 J4344 J8344
▶Refer to technical data on page 520~554. ▶ NEXT PAGE
◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ◎ ◎ ◎ ○ ○
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
○ ○ ○ ○ ○ ○
