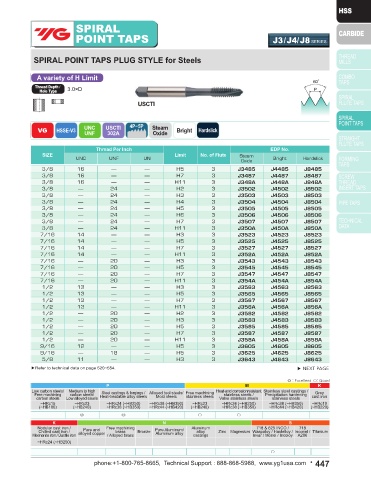

SPIRAL SPIRAL
POINT TAPS J3/J4/J8 SERIES POINT TAPS J3/J4/J8 SERIES

SPIRAL POINT TAPS PLUG STYLE for Steels SPIRAL POINT TAPS PLUG STYLE for Steels

A variety of H Limit A variety of H Limit
Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type
USCTI USCTI

VG HSSE-V3 UNC USCTI 4P~5P Steam Bright Hardslick VG HSSE-V3 UNC USCTI 4P~5P Steam Bright Hardslick
Oxide
Oxide
UNF
302A
302A
UNF
Thread Per Inch EDP No. Thread Per Inch EDP No.
SIZE Limit No. of Flute Steam SIZE Limit No. of Flute Steam
UNC UNF UN Bright Hardslick UNC UNF UN Bright Hardslick
Oxide Oxide
#10 — 32 — H5 3 J3345 J4345 J8345 3/8 16 — — H5 3 J3485 J4485 J8485
#10 — 32 — H6 3 J3346 J4346 J8346 3/8 16 — — H7 3 J3487 J4487 J8487
#10 — 32 — H7 3 J3347 J4347 J8347 3/8 16 — — H11 3 J348A J448A J848A
#10 — 32 — H11 3 J334A J434A J834A 3/8 — 24 — H2 3 J3502 J4502 J8502
#12 24 — — H3 3 J3363 J4363 J8363 3/8 — 24 — H3 3 J3503 J4503 J8503
#12 — 28 — H3 3 J3383 J4383 J8383 3/8 — 24 — H4 3 J3504 J4504 J8504
1/4 20 — — H2 3 J3402 J4402 J8402 3/8 — 24 — H5 3 J3505 J4505 J8505
1/4 20 — — H3 3 J3403 J4403 J8403 3/8 — 24 — H6 3 J3506 J4506 J8506
1/4 20 — — H5 3 J3405 J4405 J8405 3/8 — 24 — H7 3 J3507 J4507 J8507
1/4 20 — — H7 3 J3407 J4407 J8407 3/8 — 24 — H11 3 J350A J450A J850A
1/4 20 — — H11 3 J340A J440A J840A 7/16 14 — — H3 3 J3523 J4523 J8523
1/4 — 28 — H2 3 J3422 J4422 J8422 7/16 14 — — H5 3 J3525 J4525 J8525
1/4 — 28 — H3 3 J3423 J4423 J8423 7/16 14 — — H7 3 J3527 J4527 J8527
1/4 — 28 — H4 3 J3424 J4424 J8424 7/16 14 — — H11 3 J352A J452A J852A
1/4 — 28 — H5 3 J3425 J4425 J8425 7/16 — 20 — H3 3 J3543 J4543 J8543
1/4 — 28 — H6 3 J3426 J4426 J8426 7/16 — 20 — H5 3 J3545 J4545 J8545
1/4 — 28 — H7 3 J3427 J4427 J8427 7/16 — 20 — H7 3 J3547 J4547 J8547
1/4 — 28 — H11 3 J342A J442A J842A 7/16 — 20 — H11 3 J354A J454A J854A
5/16 18 — — H3 3 J3443 J4443 J8443 1/2 13 — — H3 3 J3563 J4563 J8563
5/16 18 — — H5 3 J3445 J4445 J8445 1/2 13 — — H5 3 J3565 J4565 J8565
5/16 18 — — H7 3 J3447 J4447 J8447 1/2 13 — — H7 3 J3567 J4567 J8567
5/16 18 — — H11 3 J344A J444A J844A 1/2 13 — — H11 3 J356A J456A J856A
5/16 — 24 — H2 3 J3462 J4462 J8462 1/2 — 20 — H2 3 J3582 J4582 J8582
5/16 — 24 — H3 3 J3463 J4463 J8463 1/2 — 20 — H3 3 J3583 J4583 J8583
5/16 — 24 — H4 3 J3464 J4464 J8464 1/2 — 20 — H5 3 J3585 J4585 J8585
5/16 — 24 — H5 3 J3465 J4465 J8465 1/2 — 20 — H7 3 J3587 J4587 J8587
5/16 — 24 — H6 3 J3466 J4466 J8466 1/2 — 20 — H11 3 J358A J458A J858A
5/16 — 24 — H7 3 J3467 J4467 J8467 9/16 12 — — H5 3 J3605 J4605 J8605
5/16 — 24 — H11 3 J346A J446A J846A 9/16 — 18 — H5 3 J3625 J4625 J8625
3/8 16 — — H3 3 J3483 J4483 J8483 5/8 11 — — H3 3 J3643 J4643 J8643
▶Refer to technical data on page 520~554. ▶ NEXT PAGE ▶Refer to technical data on page 520~554. ▶ NEXT PAGE

◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
◎ ◎ ○ ○ ◎ ◎ ○ ○
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
○ ○
446 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 447
