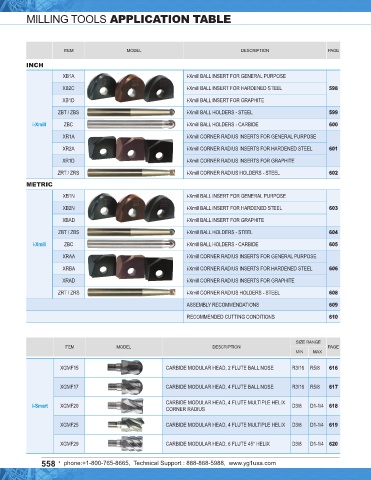

MILLING TOOLS APPLICATION TABLE INSERT

◎ : Excellent ◯ : Good
P M K N
Carbon Steels Alloy Steels Tool Steels Hardened Stainless Cast lron Aluminum
ITEM MODEL DESCRIPTION PAGE Steels Steels Graphite
~HRc35 HRc35~ ~HRc35 HRc35~ ~HRc35 HRc35~ HRc50~ ~HRc28 ~HRc35 ~HRc8
INCH

XB1A i-Xmill BALL INSERT FOR GENERAL PURPOSE ◎ ○ ◎ ○ ◎ ○ ○ ○ ○
XB2C i-Xmill BALL INSERT FOR HARDENED STEEL 598 ○ ◎ ○ ◎ ○ ◎ ◎ ◎

XB1D i-Xmill BALL INSERT FOR GRAPHITE ○ ○ ○ ○ ◎
ZBT / ZBS i-Xmill BALL HOLDERS - STEEL 599

i-Xmill ZBC i-Xmill BALL HOLDERS - CARBIDE 600
XR1A i-Xmill CORNER RADIUS INSERTS FOR GENERAL PURPOSE ◎ ○ ◎ ○ ◎ ○ ○ ○ ○

XR2A i-Xmill CORNER RADIUS INSERTS FOR HARDENED STEEL 601 ○ ◎ ○ ◎ ○ ◎ ◎ ◎
XR1D i-Xmill CORNER RADIUS INSERTS FOR GRAPHITE ○ ○ ○ ○ ◎

ZRT / ZRS i-Xmill CORNER RADIUS HOLDERS - STEEL 602
METRIC

XB1N i-Xmill BALL INSERT FOR GENERAL PURPOSE ◎ ○ ◎ ○ ◎ ○ ○ ○ ○
XB2N i-Xmill BALL INSERT FOR HARDENED STEEL 603 ○ ◎ ○ ◎ ○ ◎ ◎ ◎
XBAD i-Xmill BALL INSERT FOR GRAPHITE ○ ○ ○ ○ ◎

ZBT / ZBS i-Xmill BALL HOLDERS - STEEL 604
i-Xmill ZBC i-Xmill BALL HOLDERS - CARBIDE 605

XRAA i-Xmill CORNER RADIUS INSERTS FOR GENERAL PURPOSE ◎ ○ ◎ ○ ◎ ○ ○ ○ ○
XRBA i-Xmill CORNER RADIUS INSERTS FOR HARDENED STEEL 606 ○ ◎ ○ ◎ ○ ◎ ◎ ◎

XRAD i-Xmill CORNER RADIUS INSERTS FOR GRAPHITE ○ ○ ○ ○ ◎
ZRT / ZRS i-Xmill CORNER RADIUS HOLDERS - STEEL 608

ASSEMBLY RECOMMENDATIONS 609
RECOMMENDED CUTTING CONDITIONS 610
◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
XGMF15 CARBIDE MODULAR HEAD, 2 FLUTE BALL NOSE R3/16 R5/8 616 ○ ◎ ◎ ◎ ○ ○

XGMF17 CARBIDE MODULAR HEAD, 4 FLUTE BALL NOSE R3/16 R5/8 617 ○ ◎ ◎ ◎ ○ ○

CARBIDE MODULAR HEAD, 4 FLUTE MULTIPLE HELIX
i-Smart XGMF20 D3/8 D1-1/4 618 ◎ ◎ ◎ ◎ ○ ○
CORNER RADIUS
XGMF25 CARBIDE MODULAR HEAD, 4 FLUTE MULTIPLE HELIX D3/8 D1-1/4 619 ◎ ◎ ◎ ◎ ○ ○ ○

XGMF29 CARBIDE MODULAR HEAD, 6 FLUTE 45° HELIX D3/8 D1-1/4 620 ◎ ◎ ◎ ◎ ○ ○
