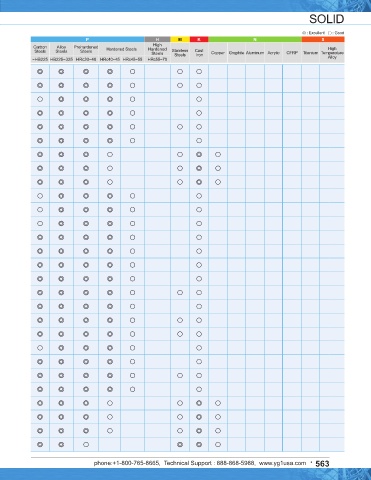

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened High
INCH / Hardened Steels Hardened Stainless Cast
ITEM MODEL FLUTES HELIX METRIC TYPE PAGE Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
GMF24 2Flute 30° Inch Long Square D3/64 D3/4 694 ◎ ◎ ◎ ◎ ○ ○ ○

GMF25 4Flute 27°/30° Inch Square D3/64 D3/4 696 ◎ ◎ ◎ ◎ ○ ○ ○

GMF26 4Flute 35°/38° Inch Square D3/64 D3/4 697 ○ ◎ ◎ ◎ ○ ○
GMF27 4Flute 30° Inch Long Square D3/64 D1 698 ◎ ◎ ◎ ◎ ○ ○

GMF28 4Flute 30° Inch with Neck D3/64 D1/2 700 ◎ ◎ ◎ ◎ ○ ○ ○

GMF29 6Flute 45° Inch Square D1/4 D3/4 701 ◎ ◎ ◎ ◎ ○ ○
G907 4&5Flute 44°/45° Inch Stub Roughing Radius D1/4 D1 702 ◎ ◎ ◎ ○ ○ ◎ ○
G928
G908 4&5Flute 44°/45° Inch Regular Roughing Radius D1/4 D1 703
G929 ◎ ◎ ◎ ○ ○ ◎ ○
G909 4&5Flute 44°/45° Inch Extended Reach D1/4 D3/4 704 ◎ ◎ ◎ ○ ○ ◎ ○
G930 Roughing Radius

SEMD98 2Flute 30° Metric Ball R0.05 R12.5 705 ○ ◎ ◎ ◎ ○ ○
SEM846 2Flute 30° Metric Long Neck Ball R0.05 R6.0 710 ○ ◎ ◎ ◎ ○ ○
Long Neck Ball
SEM846 2Flute 30° Metric R0.25 R1.0 718 ○ ◎ ◎ ◎ ○ ○
(6mm Shank)
SEMD99 2Flute 30° Metric Radius D0.2 D20.0 721 ◎ ◎ ◎ ◎ ○ ○

SEME61 2Flute 30° Metric Long Neck Radius D0.2 D20.0 727 ◎ ◎ ◎ ◎ ○ ○
4G Mill
SEME01 4Flute 27°/30° Metric Radius D1.0 D20.0 742 ◎ ◎ ◎ ◎ ○ ○
SEME64 4Flute 27°/30° Metric Long Neck Radius D1.0 D20.0 747 ◎ ◎ ◎ ◎ ○ ○

SEME35 2Flute 30° Metric Square D0.1 D25.0 759 ◎ ◎ ◎ ◎ ○ ○ ○

SEME70 2Flute 30° Metric Long Square D1.0 D25.0 764 ◎ ◎ ◎ ◎ ○ ○

SEM845 2Flute 30° Metric Long Neck Square D0.1 D12.0 769 ◎ ◎ ◎ ◎ ○ ○ ○

SEME36 4Flute 27°/30° Metric Square D0.8 D25.0 776 ◎ ◎ ◎ ◎ ○ ○ ○

SEME71 4Flute 35°/38° Metric Square D1.0 D20.0 778 ○ ◎ ◎ ◎ ○ ○

SEME72 4Flute 30° Metric Long Square D1.0 D25.0 781 ◎ ◎ ◎ ◎ ○ ○
SEME73 4Flute 30° Metric Long Neck Square D1.0 D12.0 786 ◎ ◎ ◎ ◎ ○ ○ ○

SEME75 6Flute 45° Metric Square D6.0 D20.0 790 ◎ ◎ ◎ ◎ ○ ○
G9D75 4&5Flute 44°/45° Metric Short Radius D6.0 D20.0 791 ◎ ◎ ◎ ○ ○ ◎ ○
G9D67
G9D76 4&5Flute 44°/45° Metric Long Radius D6.0 D20.0 792 ◎ ◎ ◎ ○ ○ ◎ ○
G9D68
G9D77 4&5Flute 44°/45° Metric Long Reach Radius D6.0 D20.0 793 ◎ ◎ ◎ ○ ○ ◎ ○
G9D69
GAE53 4&5Flute M-Helix Metric Short Radius D6.0 D20.0 794 ◎ ◎ ○ ◎ ◎ ○
