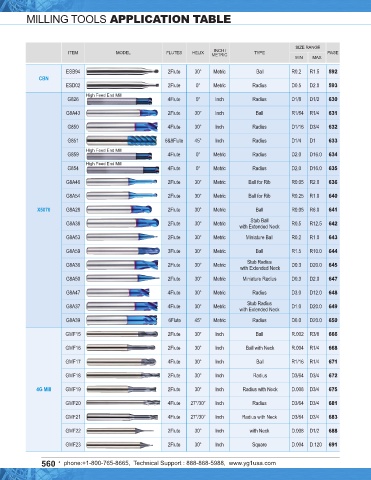

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened High
INCH / Hardened Steels Hardened Stainless Cast
ITEM MODEL FLUTES HELIX METRIC TYPE PAGE Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
ESB94 2Flute 30° Metric Ball R0.2 R1.5 592 ◎ ◎
CBN
ESD02 2Flute 0° Metric Radius D0.5 D2.0 593 ◎ ◎
High Feed End Mill
G826 4Flute 0° Inch Radius D1/8 D1/2 630 ○ ○ ◎ ◎
G8A43 2Flute 30° Inch Ball R1/64 R1/4 631 ○ ○ ◎ ◎

G850 4Flute 30° Inch Radius D1/16 D3/4 632 ○ ○ ◎ ◎

G851 6&8Flute 45° Inch Radius D1/4 D1 633 ○ ○ ◎ ◎
High Feed End Mill
G859 4Flute 0° Metric Radius D2.0 D16.0 634 ○ ○ ◎ ◎
High Feed End Mill
G854 4Flute 0° Metric Radius D2.0 D16.0 635 ○ ○ ◎ ◎

G8A46 2Flute 30° Metric Ball for Rib R0.05 R2.0 636 ○ ○ ◎ ◎

G8A54 2Flute 30° Metric Ball for Rib R0.25 R1.0 640 ○ ○ ◎ ◎
X5070 G8A28 2Flute 30° Metric Ball R0.05 R6.0 641 ○ ○ ◎ ◎
Stub Ball
G8A38 2Flute 30° Metric R0.5 R12.5 642 ○ ○ ◎ ◎
with Extended Neck
G8A53 2Flute 30° Metric Miniature Ball R0.2 R1.0 643 ○ ○ ◎ ◎

G8A59 3Flute 30° Metric Ball R1.5 R10.0 644 ○ ○ ◎ ◎
Stub Radius
G8A36 2Flute 30° Metric D0.3 D20.0 645 ○ ○ ◎ ◎
with Extended Neck
G8A50 2Flute 30° Metric Miniature Radius D0.3 D2.0 647 ○ ○ ◎ ◎

G8A47 4Flute 30° Metric Radius D3.0 D12.0 648 ○ ○ ◎ ◎

Stub Radius
G8A37 4Flute 30° Metric D1.0 D20.0 649 ○ ○ ◎ ◎
with Extended Neck
G8A39 6Flute 45° Metric Radius D6.0 D20.0 650 ○ ○ ◎ ◎

GMF15 2Flute 30° Inch Ball R.002 R3/8 666 ○ ◎ ◎ ◎ ○ ○

GMF16 2Flute 30° Inch Ball with Neck R.004 R1/4 668 ○ ◎ ◎ ◎ ○ ○

GMF17 4Flute 30° Inch Ball R1/16 R1/4 671 ○ ◎ ◎ ◎ ○ ○
GMF18 2Flute 30° Inch Radius D3/64 D3/4 672 ◎ ◎ ◎ ◎ ○ ○

4G Mill GMF19 2Flute 30° Inch Radius with Neck D.008 D3/4 675 ◎ ◎ ◎ ◎ ○ ○

GMF20 4Flute 27°/30° Inch Radius D3/64 D3/4 681 ◎ ◎ ◎ ◎ ○ ○

GMF21 4Flute 27°/30° Inch Radius with Neck D3/64 D3/4 683 ◎ ◎ ◎ ◎ ○ ○

GMF22 2Flute 30° Inch with Neck D.008 D1/2 688 ◎ ◎ ◎ ◎ ○ ○ ○
GMF23 2Flute 30° Inch Square D.004 D.120 691 ◎ ◎ ◎ ◎ ○ ○
