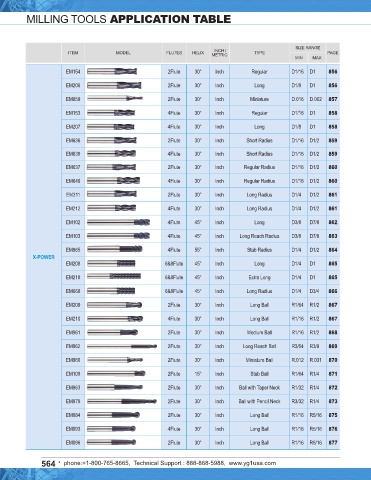

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
INCH /
ITEM MODEL FLUTES HELIX METRIC TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
EM154 2Flute 30° Inch Regular D1/16 D1 856 ○ ◎ ◎ ◎ ○ ○ ○
EM206 2Flute 30° Inch Long D1/8 D1 856 ○ ◎ ◎ ◎ ○ ○ ○

EM959 2Flute 30° Inch Miniature D.016 D.062 857 ○ ◎ ◎ ◎ ○ ○
EM153 4Flute 30° Inch Regular D1/16 D1 858 ○ ◎ ◎ ◎ ○ ○ ○

EM207 4Flute 30° Inch Long D1/8 D1 858 ○ ◎ ◎ ◎ ○ ○

EM636 2Flute 30° Inch Short Radius D1/16 D1/2 859 ○ ◎ ◎ ◎ ○

EM639 4Flute 30° Inch Short Radius D1/16 D1/2 859 ○ ◎ ◎ ◎ ○ ○ ○

EM637 2Flute 30° Inch Regular Radius D1/16 D1/2 860 ○ ◎ ◎ ◎ ○
EM649 4Flute 30° Inch Regular Radius D1/16 D1/2 860 ○ ◎ ◎ ◎ ○ ○ ○

EM211 2Flute 30° Inch Long Radius D1/4 D1/2 861 ○ ◎ ◎ ◎

EM212 4Flute 30° Inch Long Radius D1/4 D1/2 861 ○ ◎ ◎ ◎ ○ ○ ○

EM102 4Flute 45° Inch Long D3/8 D7/8 862 ○ ◎ ◎ ◎ ○ ○ ○

EM103 4Flute 45° Inch Long Reach Radius D3/8 D7/8 863 ○ ◎ ◎ ◎ ○ ○ ○
EM965 4Flute 55° Inch Stub Radius D1/4 D1/2 864 ○ ◎ ◎ ◎ ○ ○ ○
X-POWER
EM208 6&8Flute 45° Inch Long D1/4 D1 865 ○ ◎ ◎ ◎ ○ ○

EM218 6&8Flute 45° Inch Extra Long D1/4 D1 865 ○ ◎ ◎ ◎ ○ ○

EM668 6&8Flute 45° Inch Long Radius D1/4 D3/4 866 ○ ◎ ◎ ◎ ○ ○

EM209 2Flute 30° Inch Long Ball R1/64 R1/2 867 ○ ◎ ◎ ◎ ○ ○ ○

EM210 4Flute 30° Inch Long Ball R1/16 R1/2 867 ○ ◎ ◎ ◎ ○ ○ ○

EM961 2Flute 30° Inch Medium Ball R1/16 R1/2 868 ○ ◎ ◎ ◎ ○ ○ ○
EM962 2Flute 30° Inch Long Reach Ball R3/64 R3/8 869 ○ ◎ ◎ ◎ ○ ○ ○

EM960 2Flute 30° Inch Miniature Ball R.012 R.031 870 ○ ◎ ◎ ◎ ○ ○

EM109 2Flute 15° Inch Stub Ball R1/64 R1/4 871 ○ ◎ ◎

EM963 2Flute 30° Inch Ball with Taper Neck R1/32 R1/4 872 ○ ◎ ◎ ◎ ○ ○ ○

EM979 2Flute 30° Inch Ball with Pencil Neck R3/32 R1/4 873 ○ ◎ ◎ ◎ ○ ○ ○
EM084 2Flute 30° Inch Long Ball R1/16 R5/16 875 ○ ◎ ◎ ◎ ○ ○ ○

EM093 4Flute 30° Inch Long Ball R1/16 R5/16 876 ○ ◎ ◎ ◎ ○ ○ ○

EM096 2Flute 30° Inch Long Ball R1/16 R5/16 877 ○ ◎ ◎ ◎ ○ ○ ○
