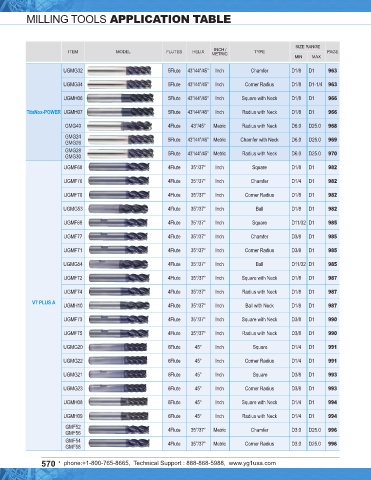

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL FLUTES HELIX INCH / TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
METRIC Steels Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
UGMG32 5Flute 43°/44°/45° Inch Chamfer D1/8 D1 963 ○ ○ ○ ◎ ○ ◎ ○

UGMG34 5Flute 43°/44°/45° Inch Corner Radius D1/8 D1-1/4 963 ○ ○ ○ ◎ ○ ◎ ○
UGMH06 5Flute 43°/44°/45° Inch Square with Neck D1/8 D1 966 ○ ○ ○ ◎ ○ ◎ ○

TitaNox-POWER UGMH07 5Flute 43°/44°/45° Inch Radius with Neck D1/8 D1 966 ○ ○ ○ ◎ ○ ◎ ○

GMG40 4Flute 43°/45° Metric Radius with Neck D6.0 D25.0 968 ○ ○ ○ ◎ ○ ◎ ○
GMG24 5Flute 43°/44°/45° Metric Chamfer with Neck D6.0 D25.0 969 ○ ○ ○ ◎ ○ ◎ ○
GMG26
GMG28 5Flute 43°/44°/45° Metric Radius with Neck D6.0 D25.0 970 ○ ○ ○ ◎ ○ ◎ ○
GMG30

UGMF68 4Flute 35°/37° Inch Square D1/8 D1 982 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
UGMF76 4Flute 35°/37° Inch Chamfer D1/4 D1 982 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF70 4Flute 35°/37° Inch Corner Radius D1/8 D1 982 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMG53 4Flute 35°/37° Inch Ball D1/8 D1 982 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF69 4Flute 35°/37° Inch Square D11/32 D1 985 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF77 4Flute 35°/37° Inch Chamfer D3/8 D1 985 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF71 4Flute 35°/37° Inch Corner Radius D3/8 D1 985 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMG54 4Flute 35°/37° Inch Ball D11/32 D1 985 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
UGMF72 4Flute 35°/37° Inch Square with Neck D1/8 D1 987 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF74 4Flute 35°/37° Inch Radius with Neck D1/8 D1 987 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
V7 PLUS A
UGMH10 4Flute 35°/37° Inch Ball with Neck D1/8 D1 987 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF73 4Flute 35°/37° Inch Square with Neck D3/8 D1 990 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMF75 4Flute 35°/37° Inch Radius with Neck D3/8 D1 990 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
UGMG20 6Flute 45° Inch Square D1/4 D1 991 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMG22 6Flute 45° Inch Corner Radius D1/4 D1 991 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMG21 6Flute 45° Inch Square D3/8 D1 993 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMG23 6Flute 45° Inch Corner Radius D3/8 D1 993 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

UGMH08 6Flute 45° Inch Square with Neck D1/4 D1 994 ○ ◎ ◎ ○ ◎ ◎ ○ ○

UGMH09 6Flute 45° Inch Radius with Neck D1/4 D1 994 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF52 4Flute 35°/37° Metric Chamfer D3.0 D25.0 996 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF56
GMF54 4Flute 35°/37° Metric Corner Radius D3.0 D25.0 996 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF58
