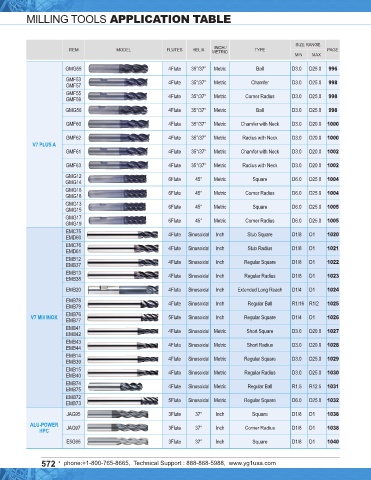

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL FLUTES HELIX INCH / TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
METRIC Steels Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
GMG55 4Flute 35°/37° Metric Ball D3.0 D25.0 996 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF53 4Flute 35°/37° Metric Chamfer D3.0 D25.0 998
GMF57 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF55 4Flute 35°/37° Metric Corner Radius D3.0 D25.0 998 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMF59
GMG56 4Flute 35°/37° Metric Ball D3.0 D25.0 998 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF60 4Flute 35°/37° Metric Chamfer with Neck D3.0 D20.0 1000 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF62 4Flute 35°/37° Metric Radius with Neck D3.0 D20.0 1000 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
V7 PLUS A
GMF61 4Flute 35°/37° Metric Chamfer with Neck D3.0 D20.0 1002 ◎ ◎ ◎ ○ ◎ ◎ ○ ○

GMF63 4Flute 35°/37° Metric Radius with Neck D3.0 D20.0 1002 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG12 6Flute 45° Metric Square D6.0 D25.0 1004 ○ ◎ ◎ ○ ◎ ◎ ○ ○
GMG14
GMG16 6Flute 45° Metric Corner Radius D6.0 D25.0 1004 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG18
GMG13 6Flute 45° Metric Square D6.0 D25.0 1005 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG15
GMG17 6Flute 45° Metric Corner Radius D6.0 D25.0 1005 ◎ ◎ ◎ ○ ◎ ◎ ○ ○
GMG19
EMC75 4Flute Sinusoidal Inch Stub Square D1/8 D1 1020 ◎ ○ ○ ◎ ◎ ○
EMD60
EMC76 4Flute Sinusoidal Inch Stub Radius D1/8 D1 1021 ◎ ○ ○ ◎ ◎ ○
EMD61
EMB12 4Flute Sinusoidal Inch Regular Square D1/8 D1 1022 ◎ ○ ○ ◎ ◎ ○
EMB37
EMB13 4Flute Sinusoidal Inch Regular Radius D1/8 D1 1023 ◎ ○ ○ ◎ ◎ ○
EMB38

EMB20 4Flute Sinusoidal Inch Extended Long Reach D1/4 D1 1024 ◎ ○ ○ ◎ ◎ ○
EMB78 4Flute Sinusoidal Inch Regular Ball R1/16 R1/2 1025 ◎ ○ ○ ◎ ◎ ○
EMB79
EMB76
V7 Mill INOX 5Flute Sinusoidal Inch Regular Square D1/4 D1 1026 ◎ ○ ○ ◎ ◎ ○
EMB77
EMB41 4Flute Sinusoidal Metric Short Square D3.0 D20.0 1027 ◎ ○ ○ ◎ ◎ ○
EMB42
EMB43 4Flute Sinusoidal Metric Short Radius D3.0 D20.0 1028 ◎ ○ ○ ◎ ◎ ○
EMB44
EMB14 4Flute Sinusoidal Metric Regular Square D3.0 D25.0 1029 ◎ ○ ○ ◎ ◎ ○
EMB39
EMB15 4Flute Sinusoidal Metric Regular Radius D3.0 D25.0 1030 ◎ ○ ○ ◎ ◎ ○
EMB40
EMB74 4Flute Sinusoidal Metric Regular Ball R1.5 R12.5 1031 ◎ ○ ○ ◎ ◎ ○
EMB75
EMB72 5Flute Sinusoidal Metric Regular Square D6.0 D25.0 1032 ◎ ○ ○ ◎ ◎ ○
EMB73
JAG95 3Flute 37° Inch Square D1/8 D1 1038 ◎
ALU-POWER JAG97 3Flute 37° Inch D1/8 D1 1038 ◎
HPC Corner Radius
E5G95 3Flute 37° Inch Square D1/8 D1 1040 ◎
