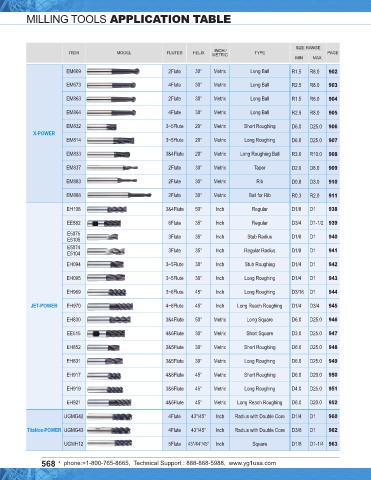

Page 568 - YG 2019

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened High
INCH / Hardened Steels Hardened Stainless Cast
ITEM MODEL FLUTES HELIX METRIC TYPE PAGE Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
EM669 2Flute 30° Metric Long Ball R1.5 R8.0 902 ○ ◎ ◎ ◎ ○ ○ ○

EM673 4Flute 30° Metric Long Ball R2.5 R8.0 903 ○ ◎ ◎ ◎ ○ ○ ○

EM863 2Flute 30° Metric Long Ball R1.5 R8.0 904 ○ ◎ ◎ ◎ ○ ○ ○
EM864 4Flute 30° Metric Long Ball R2.5 R8.0 905 ○ ◎ ◎ ◎ ○ ○ ○

EM832 3~5Flute 20° Metric Short Roughing D6.0 D25.0 906 ○ ◎ ◎ ◎ ○ ○ ○
X-POWER
EM814 3~5Flute 20° Metric Long Roughing D6.0 D25.0 907 ○ ◎ ◎ ◎ ○ ○ ○

EM833 3&4Flute 20° Metric Long Roughing Ball R3.0 R10.0 908 ○ ◎ ◎ ◎ ○ ○ ○

EM837 2Flute 30° Metric Taper D2.0 D8.0 909 ○ ◎ ◎ ◎ ○ ○
EM883 2Flute 30° Metric Rib D0.8 D3.0 910 ○ ◎ ◎ ◎ ○ ○

EM886 2Flute 30° Metric Ball for Rib R0.3 R2.0 911 ○ ◎ ◎ ◎ ○ ○

EH108 3&4Flute 50° Inch Regular D1/8 D1 938 ○ ◎ ◎ ○ ◎ ○ ○ ○

EE882 6Flute 35° Inch Regular D3/4 D1-1/2 939 ○ ◎ ◎ ○ ◎ ◎ ○
E5075 3Flute 35° Inch Stub Radius D1/8 D1 940
E5105 ○ ◎ ○ ◎ ○
E5074 3Flute 35° Inch Regular Radius D1/8 D1 941
E5104 ○ ◎ ○ ◎ ○

EH094 3~5Flute 30° Inch Stub Roughing D1/4 D1 942 ○ ◎ ◎ ○ ◎ ◎ ○
EH095 3~5Flute 30° Inch Long Roughing D1/4 D1 943 ○ ◎ ◎ ○ ◎ ◎ ○

EH969 3~6Flute 45° Inch Long Roughing D3/16 D1 944 ○ ◎ ◎ ○ ◎ ◎ ○

JET-POWER EH970 4~6Flute 45° Inch Long Reach Roughing D1/4 D3/4 945 ○ ◎ ◎ ○ ◎ ◎ ○

EH830 3&4Flute 50° Metric Long Square D6.0 D25.0 946 ○ ◎ ◎ ○ ◎ ◎ ○

EE515 4&6Flute 30° Metric Short Square D3.0 D25.0 947 ○ ◎ ◎ ○ ◎ ◎ ○
EH852 3&5Flute 30° Metric Short Roughing D6.0 D25.0 948 ○ ◎ ◎ ○ ◎ ◎ ○

EH831 3&5Flute 30° Metric Long Roughing D6.0 D25.0 949 ○ ◎ ◎ ○ ◎ ◎ ○

EH917 4&6Flute 45° Metric Short Roughing D6.0 D20.0 950 ○ ◎ ◎ ○ ◎ ◎ ○

EH919 3&6Flute 45° Metric Long Roughing D4.0 D25.0 951 ○ ◎ ◎ ○ ◎ ◎ ○

EH921 4&6Flute 45° Metric Long Reach Roughing D6.0 D20.0 952 ○ ◎ ◎ ○ ◎ ◎ ○

UGMG42 4Flute 43°/45° Inch Radius with Double Core D1/4 D1 960 ○ ○ ○ ◎ ○ ◎ ○

TitaNox-POWER UGMG43 4Flute 43°/45° Inch Radius with Double Core D3/8 D1 962 ○ ○ ○ ◎ ○ ◎ ○
UGMH12 5Flute 43°/44°/45° Inch Square D1/8 D1-1/4 963 ○ ○ ○ ◎ ○ ◎ ○
