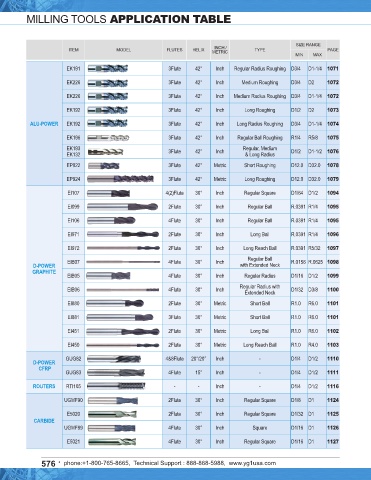

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL FLUTES HELIX INCH / TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
METRIC Steels Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
EK191 3Flute 42° Inch Regular Radius Roughing D3/4 D1-1/4 1071 ◎

EK226 3Flute 42° Inch Medium Roughing D3/4 D2 1072 ◎

EK226 3Flute 42° Inch Medium Radius Roughing D3/4 D1-1/4 1072 ◎

EK192 3Flute 42° Inch Long Roughing D1/2 D2 1073 ◎

ALU-POWER EK192 3Flute 42° Inch Long Radius Roughing D3/4 D1-1/4 1074 ◎

EK196 3Flute 42° Inch Regular Ball Roughing R1/4 R5/8 1075 ◎
EK193 3Flute 42° Inch Regular, Medium D1/2 D1-1/2 1076 ◎
EK132 & Long Radius
EP922 3Flute 42° Metric Short Roughing D12.0 D32.0 1078 ◎

EP924 3Flute 42° Metric Long Roughing D12.0 D32.0 1079 ◎

EI107 4(2)Flute 30° Inch Regular Square D1/64 D1/2 1094 ◎ ○

EI099 2Flute 30° Inch Regular Ball R.0391 R1/4 1095 ◎ ○
EI106 4Flute 30° Inch Regular Ball R.0391 R1/4 1095 ◎ ○

EI971 2Flute 30° Inch Long Ball R.0391 R1/4 1096 ◎ ○

EI972 2Flute 30° Inch Long Reach Ball R.0391 R5/32 1097 ◎ ○
Regular Ball
EIB07 4Flute 30° Inch R.0156 R.0625 1098 ◎ ○
D-POWER with Extended Neck
GRAPHITE
EIB05 4Flute 30° Inch Regular Radius D1/16 D1/2 1099 ◎ ○
Regular Radius with
EIB06 4Flute 30° Inch D1/32 D3/8 1100 ◎ ○
Extended Neck
EI880 2Flute 30° Metric Short Ball R1.0 R6.0 1101 ◎ ○
EI881 3Flute 30° Metric Short Ball R1.0 R6.0 1101 ◎ ○

EI451 2Flute 30° Metric Long Ball R1.0 R6.0 1102 ◎ ○

EI450 2Flute 30° Metric Long Reach Ball R1.0 R4.0 1103 ◎ ○

GUG82 4&8Flute 20°/20° Inch - D1/4 D1/2 1110 ○ ◎
D-POWER
CFRP
GUG83 4Flute 15° Inch - D1/4 D1/2 1111 ○ ◎
ROUTERS RTI105 - - Inch - D1/4 D1/2 1116 ◎

UGMF90 2Flute 30° Inch Regular Square D1/8 D1 1124 ◎ ◎ ◎ ○ ○ ○ ○

E5020 2Flute 30° Inch Regular Square D1/32 D1 1125 ◎ ◎ ◎ ○ ○ ○ ○
CARBIDE
UGMF89 4Flute 30° Inch Square D1/16 D1 1126 ◎ ◎ ◎ ○ ○ ○ ○

E5021 4Flute 30° Inch Regular Square D1/16 D1 1127 ◎ ◎ ◎ ○ ○ ○ ○
