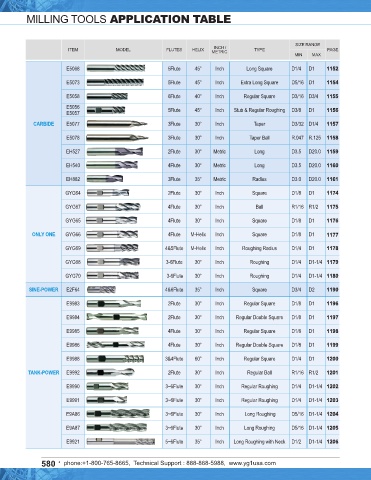

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
INCH /
ITEM MODEL FLUTES HELIX METRIC TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
E5068 5Flute 45° Inch Long Square D1/4 D1 1152 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
E5073 5Flute 45° Inch Extra Long Square D5/16 D1 1154 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5058 6Flute 40° Inch Regular Square D3/16 D3/4 1155 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
E5056 5Flute 45° Inch Stub & Regular Roughing D3/8 D1 1156 ○ ◎ ◎ ○ ◎ ○
E5057

CARBIDE E5077 3Flute 30° Inch Taper D3/32 D1/4 1157 ◎ ◎ ◎ ○ ○ ○ ○

E5078 3Flute 30° Inch Taper Ball R.047 R.125 1158 ◎ ◎ ◎ ○ ○ ○ ○
EH527 2Flute 30° Metric Long D3.5 D20.0 1159 ◎ ◎ ◎ ○ ○ ○ ○ ○

EH540 4Flute 30° Metric Long D3.5 D20.0 1160 ◎ ◎ ◎ ○ ○ ○ ○ ○

EH882 3Flute 35° Metric Radius D3.0 D20.0 1161 ◎ ◎ ◎ ○ ○ ◎ ◎

GYG64 2Flute 30° Inch Square D1/8 D1 1174 ◎ ◎ ○ ○ ◎ ◎ ○

GYG67 4Flute 30° Inch Ball R1/16 R1/2 1175 ◎ ◎ ○ ○ ◎ ◎ ○
GYG65 4Flute 30° Inch Square D1/8 D1 1176 ◎ ◎ ○ ○ ◎ ◎ ○

ONLY ONE GYG66 4Flute M-Helix Inch Square D1/8 D1 1177 ◎ ◎ ○ ○ ◎ ◎ ○

GYG69 4&5Flute M-Helix Inch Roughing Radius D1/4 D1 1178 ◎ ◎ ○ ○ ◎ ◎ ○

GYG68 3-6Flute 30° Inch Roughing D1/4 D1-1/4 1179 ◎ ◎ ○ ○ ◎ ◎ ○

GYG70 3-6Flute 30° Inch Roughing D1/4 D1-1/4 1180 ◎ ◎ ○ ○ ◎ ◎ ○

SINE-POWER E2F64 4&6Flute 35° Inch Square D3/4 D2 1190 ◎

E9983 2Flute 30° Inch Regular Square D1/8 D1 1196 ◎ ◎ ◎ ◎ ◎ ○
E9984 2Flute 30° Inch Regular Double Square D1/8 D1 1197 ◎ ◎ ◎ ◎ ◎ ○

E9985 4Flute 30° Inch Regular Square D1/8 D1 1198 ◎ ◎ ◎ ◎ ◎ ○

E9986 4Flute 30° Inch Regular Double Square D1/8 D1 1199 ◎ ◎ ◎ ◎ ◎ ○

E9988 3&4Flute 60° Inch Regular Square D1/4 D1 1200 ◎ ◎ ◎ ◎ ◎ ○

TANK-POWER E9992 2Flute 30° Inch Regular Ball R1/16 R1/2 1201 ◎ ◎ ◎ ◎ ◎ ○
E9990 3~6Flute 30° Inch Regular Roughing D1/4 D1-1/4 1202 ◎ ◎ ◎ ◎ ◎ ○

E9991 3~6Flute 30° Inch Regular Roughing D1/4 D1-1/4 1203 ◎ ◎ ◎ ◎ ◎ ○

E9A86 3~6Flute 30° Inch Long Roughing D5/16 D1-1/4 1204 ◎ ◎ ◎ ◎ ◎ ○

E9A87 3~6Flute 30° Inch Long Roughing D5/16 D1-1/4 1205 ◎ ◎ ◎ ◎ ◎ ○

E9921 5~6Flute 35° Inch Long Roughing with Neck D1/2 D1-1/4 1206 ◎ ◎ ◎ ◎ ◎ ○
