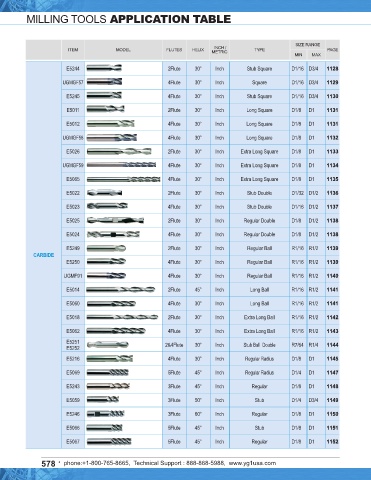

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL FLUTES HELIX INCH / TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
METRIC Steels Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
E5244 2Flute 30° Inch Stub Square D1/16 D3/4 1128 ◎ ◎ ◎ ○ ○ ○ ○

UGMGF57 4Flute 30° Inch Square D1/16 D3/4 1129 ◎ ◎ ◎ ○ ○ ○ ○

E5245 4Flute 30° Inch Stub Square D1/16 D3/4 1130 ◎ ◎ ◎ ○ ○ ○ ○

E5011 2Flute 30° Inch Long Square D1/8 D1 1131 ◎ ◎ ◎ ○ ○ ○ ○

E5012 4Flute 30° Inch Long Square D1/8 D1 1131 ◎ ◎ ◎ ○ ○ ○ ○

UGMGF58 4Flute 30° Inch Long Square D1/8 D1 1132 ◎ ◎ ◎ ○ ○ ○ ○
E5026 2Flute 30° Inch Extra Long Square D1/8 D1 1133 ◎ ◎ ◎ ○ ○ ○ ○

UGMGF59 4Flute 30° Inch Extra Long Square D1/8 D1 1134 ◎ ◎ ◎ ○ ○ ○ ○

E5065 4Flute 30° Inch Extra Long Square D1/8 D1 1135 ◎ ◎ ◎ ○ ○ ○ ○

E5022 2Flute 30° Inch Stub Double D1/32 D1/2 1136 ◎ ◎ ◎ ○ ○ ○ ○

E5023 4Flute 30° Inch Stub Double D1/16 D1/2 1137 ◎ ◎ ◎ ○ ○ ○ ○
E5025 2Flute 30° Inch Regular Double D1/8 D1/2 1138 ◎ ◎ ◎ ○ ○ ○ ○

E5024 4Flute 30° Inch Regular Double D1/8 D1/2 1138 ◎ ◎ ◎ ○ ○ ○ ○

E5249 2Flute 30° Inch Regular Ball R1/16 R1/2 1139 ◎ ◎ ◎ ○ ○ ○ ○
CARBIDE
E5250 4Flute 30° Inch Regular Ball R1/16 R1/2 1139 ◎ ◎ ◎ ○ ○ ○ ○

UGMF91 4Flute 30° Inch Regular Ball R1/16 R1/2 1140 ◎ ◎ ◎ ○ ○ ○ ○

E5014 2Flute 45° Inch Long Ball R1/16 R1/2 1141 ◎ ◎ ◎ ○ ○ ○ ○

E5060 4Flute 30° Inch Long Ball R1/16 R1/2 1141 ◎ ◎ ◎ ○ ○ ○ ○
E5018 2Flute 30° Inch Extra Long Ball R1/16 R1/2 1142 ◎ ◎ ◎ ○ ○ ○ ○

E5062 4Flute 30° Inch Extra Long Ball R1/16 R1/2 1143 ◎ ◎ ◎ ○ ○ ○ ○ ○
E5251 2&4Flute 30° Inch Stub Ball Double R7/64 R1/4 1144 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
E5252
E5216 4Flute 30° Inch Regular Radius D1/8 D1 1145 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5069 5Flute 45° Inch Regular Radius D1/4 D1 1147 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
E5243 3Flute 45° Inch Regular D1/8 D1 1148 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5059 3Flute 50° Inch Stub D1/4 D3/4 1149 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5246 3Flute 60° Inch Regular D1/8 D1 1150 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5066 5Flute 45° Inch Stub D1/8 D1 1151 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○

E5067 5Flute 45° Inch Regular D1/8 D1 1152 ◎ ◎ ◎ ○ ◎ ○ ○ ○ ○
