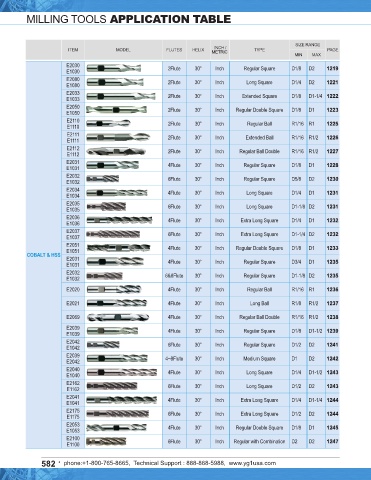

MILLING TOOLS APPLICATION TABLE SOLID

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE RANGE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL FLUTES HELIX INCH / TYPE PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
METRIC Steels Iron
MIN MAX ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
E2030 2Flute 30° Inch Regular Square D1/8 D2 1219
E1030 ◎ ◎ ○ ○ ○
E2080 2Flute 30° Inch Long Square D1/4 D2 1221
E1080 ◎ ◎ ○ ○ ○
E2033 2Flute 30° Inch Extended Square D1/8 D1-1/4 1222 ◎ ◎ ○ ○ ○
E1033
E2050 2Flute 30° Inch Regular Double Square D1/8 D1 1223
E1050 ◎ ◎ ○ ○ ○
E2110 2Flute 30° Inch Regular Ball R1/16 R1 1225
E1110 ◎ ◎ ○ ○ ○
E2111 2Flute 30° Inch Extended Ball R1/16 R1/2 1226 ◎ ◎ ○ ○ ○
E1111
E2112 2Flute 30° Inch Regular Ball Double R1/16 R1/2 1227 ◎ ◎ ○ ○ ○
E1112
E2031 4Flute 30° Inch Regular Square D1/8 D1 1228
E1031 ◎ ◎ ○ ○ ○
E2032 6Flute 30° Inch Regular Square D5/8 D2 1230 ◎ ◎ ○ ○
E1032
E2034 4Flute 30° Inch Long Square D1/4 D1 1231 ◎ ◎ ○ ○ ○
E1034
E2035 6Flute 30° Inch Long Square D1-1/8 D2 1231
E1035 ◎ ◎ ○ ○
E2036 4Flute 30° Inch Extra Long Square D1/4 D1 1232 ◎ ◎ ○ ○ ○
E1036
E2037 6Flute 30° Inch Extra Long Square D1-1/4 D2 1232 ◎ ◎ ○ ○
E1037
E2051 4Flute 30° Inch Regular Double Square D1/8 D1 1233
E1051 ◎ ◎ ○ ○ ○
COBALT & HSS
E2031 4Flute 30° Inch Regular Square D3/4 D1 1235 ◎ ◎ ○ ○ ○
E1031
E2032 6&8Flute 30° Inch Regular Square D1-1/8 D2 1235 ◎ ◎ ○ ○
E1032

E2020 4Flute 30° Inch Regular Ball R1/16 R1 1236 ◎ ◎ ○ ○ ○

E2021 4Flute 30° Inch Long Ball R1/8 R1/2 1237 ◎ ◎ ○ ○ ○
E2069 4Flute 30° Inch Regular Ball Double R1/16 R1/2 1238 ◎ ◎ ○ ○ ○
E2039 4Flute 30° Inch Regular Square D1/8 D1-1/2 1239 ◎ ◎ ○ ○ ○
E1039
E2042 6Flute 30° Inch Regular Square D1/2 D2 1241 ◎ ◎ ○ ○
E1042
E2039 4~8Flute 30° Inch Medium Square D1 D2 1242 ◎ ◎ ○ ○ ○
E2042
E2040 4Flute 30° Inch Long Square D1/4 D1-1/2 1243 ◎ ◎ ○ ○ ○
E1040
E2162 6Flute 30° Inch Long Square D1/2 D2 1243 ◎ ◎ ○ ○
E1162
E2041 4Flute 30° Inch Extra Long Square D1/4 D1-1/4 1244 ◎ ◎ ○ ○ ○
E1041
E2175 6Flute 30° Inch Extra Long Square D1/2 D2 1244 ◎ ◎ ○ ○
E1175
E2053 4Flute 30° Inch Regular Double Square D1/8 D1 1245 ◎ ◎ ○ ○ ○
E1053
E2100 6Flute 30° Inch Regular with Combination D2 D2 1247 ◎ ◎ ○ ○
E1100
