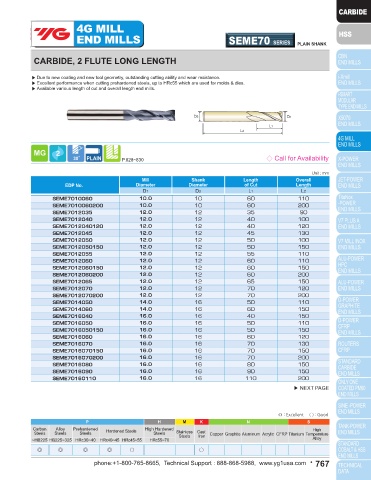

Page 767 - YG 2019

4G MILL 4G MILL
END MILLS SEME70 SERIES PLAIN SHANK END MILLS SEME70 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE LONG LENGTH CARBIDE, 2 FLUTE LONG LENGTH

▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶ Available various length of cut and overall length end mills. ▶ Available various length of cut and overall length end mills.

D2 D1
D2 D1
L1
L2 L1
L2

P.828~830 ◇ Call for Availability P.828~830 ◇ Call for Availability

Unit : mm Unit : mm
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
SEME7006030 6.0 6 30 80 SEME7010060 10.0 10 60 110
SEME7006030100 6.0 6 30 100 SEME7010060200 10.0 10 60 200
SEME7006030150 6.0 6 30 150 SEME7012035 12.0 12 35 90
SEME7006035 6.0 6 35 90 SEME7012040 12.0 12 40 100
SEME7006040 6.0 6 40 90 SEME7012040120 12.0 12 40 120
SEME7006040120 6.0 6 40 120 SEME7012045 12.0 12 45 130
SEME7006045 6.0 6 45 150 SEME7012050 12.0 12 50 100
SEME7008025 8.0 8 25 80 SEME7012050150 12.0 12 50 150
SEME7008030 8.0 8 30 80 SEME7012055 12.0 12 55 110
SEME7008030100 8.0 8 30 100 SEME7012060 12.0 12 60 110
SEME7008035 8.0 8 35 90 SEME7012060150 12.0 12 60 150
SEME7008040 8.0 8 40 90 SEME7012060200 12.0 12 60 200
SEME7008040120 8.0 8 40 120 SEME7012065 12.0 12 65 150
SEME7008040150 8.0 8 40 150 SEME7012070 12.0 12 70 120
SEME7008045 8.0 8 45 100 SEME7012070200 12.0 12 70 200
SEME7008050 8.0 8 50 100 SEME7014050 14.0 16 50 110
SEME7008050150 8.0 8 50 150 SEME7014060 14.0 16 60 150
SEME7010030 10.0 10 30 80 SEME7016040 16.0 16 40 150
SEME7010030100 10.0 10 30 100 SEME7016050 16.0 16 50 110
SEME7010035 10.0 10 35 90 SEME7016050150 16.0 16 50 150
SEME7010040 10.0 10 40 90 SEME7016060 16.0 16 60 120
SEME7010040120 10.0 10 40 120 SEME7016070 16.0 16 70 130
SEME7010045 10.0 10 45 100 SEME7016070150 16.0 16 70 150
SEME7010050 10.0 10 50 100 SEME7016070200 16.0 16 70 200
SEME7010050150 10.0 10 50 150 SEME7016080 16.0 16 80 150
SEME7010050200 10.0 10 50 200 SEME7016090 16.0 16 90 150
SEME7010055 10.0 10 55 150 SEME70160110 16.0 16 110 200
▶ NEXT PAGE ▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
