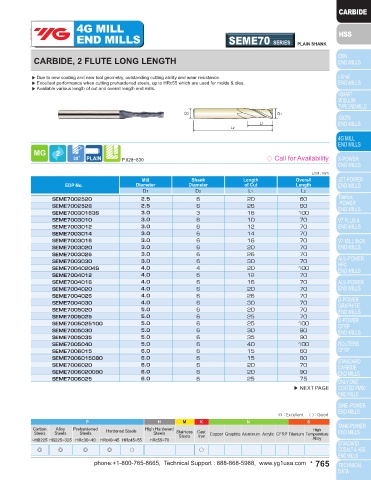

Page 765 - YG 2019

4G MILL 4G MILL
END MILLS SEME70 SERIES PLAIN SHANK END MILLS SEME70 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE LONG LENGTH CARBIDE, 2 FLUTE LONG LENGTH

▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶ Available various length of cut and overall length end mills. ▶ Available various length of cut and overall length end mills.

D2 D1 D2 D1
L1 L1
L2 L2

P.828~830 ◇ Call for Availability P.828~830 ◇ Call for Availability

Unit : mm Unit : mm
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
SEME7001003 1.0 6 3 60 SEME7002520 2.5 6 20 60
SEME7001004 1.0 6 4 60 SEME7002526 2.5 6 26 60
SEME7001005 1.0 6 5 60 SEME70030163S 3.0 3 16 100
SEME7001006 1.0 6 6 60 SEME7003010 3.0 6 10 70
SEME7001007 1.0 6 7 60 SEME7003012 3.0 6 12 70
SEME7001008 1.0 6 8 60 SEME7003014 3.0 6 14 70
SEME7001010 1.0 6 10 60 SEME7003016 3.0 6 16 70
SEME7001012 1.0 6 12 60 SEME7003020 3.0 6 20 70
SEME7001204 1.2 6 4 60 SEME7003026 3.0 6 26 70
SEME7001206 1.2 6 6 60 SEME7003030 3.0 6 30 70
SEME7001208 1.2 6 8 60 SEME70040204S 4.0 4 20 100
SEME7001210 1.2 6 10 60 SEME7004012 4.0 6 12 70
SEME7001212 1.2 6 12 60 SEME7004016 4.0 6 16 70
SEME7001506 1.5 6 6 60 SEME7004020 4.0 6 20 70
SEME7001508 1.5 6 8 60 SEME7004026 4.0 6 26 70
SEME7001510 1.5 6 10 60 SEME7004030 4.0 6 30 70
SEME7001512 1.5 6 12 60 SEME7005020 5.0 6 20 70
SEME7001514 1.5 6 14 60 SEME7005025 5.0 6 25 70
SEME7001516 1.5 6 16 60 SEME7005025100 5.0 6 25 100
SEME7002008 2.0 6 8 60 SEME7005030 5.0 6 30 80
SEME7002010 2.0 6 10 60 SEME7005035 5.0 6 35 90
SEME7002012 2.0 6 12 60 SEME7005040 5.0 6 40 100
SEME7002014 2.0 6 14 60 SEME7006015 6.0 6 15 60
SEME7002016 2.0 6 16 60 SEME7006015080 6.0 6 15 80
SEME7002510 2.5 6 10 60 SEME7006020 6.0 6 20 70
SEME7002512 2.5 6 12 60 SEME7006020090 6.0 6 20 90
SEME7002516 2.5 6 16 60 SEME7006025 6.0 6 25 75
▶ NEXT PAGE ▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Iron
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
764 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 765
