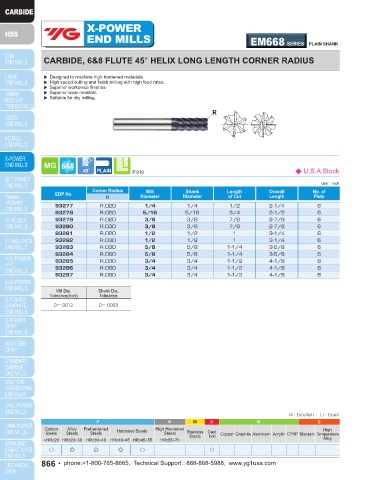

Page 866 - YG 2019

X-POWER X-POWER EM209 SERIES PLAIN SHANK
END MILLS EM668 SERIES PLAIN SHANK END MILLS EM210 SERIES PLAIN SHANK

CARBIDE, 6&8 FLUTE 45° HELIX LONG LENGTH CORNER RADIUS CARBIDE, 2&4 FLUTE LONG LENGTH BALL NOSE

▶ Designed to machine high hardened materials. ▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
▶ High speed cutting and finish milling with high feed rates. ▶ For copy-milling machines.
▶ Superior workpiece finishes.
▶ Superior wear resistant. R
▶ Suitable for dry milling. ↙

R
↙
R
↙

P.919 ◆ U.S.A Stock P.920, 921 ◆ U.S.A Stock
Unit : Inch EM209(2 FLUTE), EM210(4 FLUTE) Series Unit : Inch
Corner Radius Mill Shank Length Overall No. of Radius of
EDP No. EDP No. Mill Shank Length Overall
R Diameter Diameter of Cut Length Flute Ball Nose Diameter Diameter of Cut Length
93277 R.020 1/4 1/4 1/2 2-1/4 6 2 FLUTE 4 FLUTE R (±.001)
93278 R.020 5/16 5/16 3/4 2-1/2 6 93260 - R 1/64 1/32 1/4 1/32 2-1/2
93279 R.020 3/8 3/8 7/8 2-7/8 6 93261 - R 1/32 1/16 1/4 1/16 2-1/2
93280 R.030 3/8 3/8 7/8 2-7/8 6 93262 - R 3/64 3/32 1/4 3/32 2-1/2
93281 R.020 1/2 1/2 1 3-1/4 6 93125 93134 R 1/16 1/8 1/8 5/16 2-3/8
93282 R.030 1/2 1/2 1 3-1/4 6 93126 93135 R 3/32 3/16 3/16 3/8 3-1/8
93283 R.030 5/8 5/8 1-1/4 3-5/8 6 93127 93136 R 1/8 1/4 1/4 1/2 3-1/2
93284 R.060 5/8 5/8 1-1/4 3-5/8 6 93128 93137 R 5/32 5/16 5/16 9/16 4
93285 R.030 3/4 3/4 1-1/2 4-1/8 8 93129 93138 R 3/16 3/8 3/8 3/4 4
93286 R.060 3/4 3/4 1-1/2 4-1/8 8 93130 93139 R 1/4 1/2 1/2 7/8 4-1/4
93287 R.090 3/4 3/4 1-1/2 4-1/8 8 93131 93140 R 5/16 5/8 5/8 1-1/4 5-1/2
93132 93141 R 3/8 3/4 3/4 1-1/2 6-1/4
Mill Dia. Shank Dia. 93133 93142 R 1/2 1 1 2 7-1/8
Tolerance(inch) Tolerance
0~-.0012 0~-.0003 Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
0~-.0012 0~-.0003

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ○ ○
