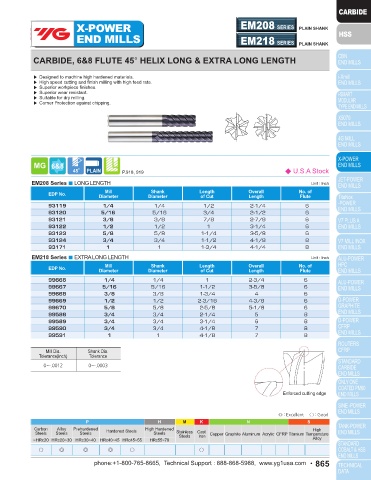

Page 865 - YG 2019

X-POWER X-POWER EM208 SERIES PLAIN SHANK
END MILLS EM965 SERIES PLAIN SHANK END MILLS EM218 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE 55° HELIX STUB LENGTH CORNER RADIUS CARBIDE, 6&8 FLUTE 45° HELIX LONG & EXTRA LONG LENGTH

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials. ▶ Designed to machine high hardened materials.
▶ Corner radius and corner protection against chipping. ▶ High speed cutting and finish milling with high feed rate.
▶ Superior workpiece finishes.
▶ Superior wear resistant.
▶ Suitable for dry milling.
▶ Corner Protection against chipping.
R R
↙ D3
D2 D1
L1
L3
L2

P.917 ◆ U.S.A Stock P.918, 919 ◆ U.S.A Stock
Unit : Inch EM208 Series ■ LONG LENGTH Unit : Inch
Corner Mill Shank Length Length Overall Neck EDP No. Mill Shank Length Overall No. of
EDP No. Radius Diameter Diameter of Cut Below Shank Length Diameter Diameter Diameter of Cut Length Flute
R (±.001) D1 D2 L1 L3 L2 D3 93119 1/4 1/4 1/2 2-1/4 6
93544 R.063 1/4 1/4 5/16 7/8 2-1/4 .230 93120 5/16 5/16 3/4 2-1/2 6
93545 R.078 5/16 5/16 3/8 1 2-1/2 .289 93121 3/8 3/8 7/8 2-7/8 6
93546 R.094 3/8 3/8 7/16 1-1/4 3 .344 93122 1/2 1/2 1 3-1/4 6
93596 R.109 7/16 7/16 1/2 1-1/2 3-1/4 .395 93123 5/8 5/8 1-1/4 3-5/8 6
93547 R.125 1/2 1/2 1/2 1-1/2 3-1/4 .461 93124 3/4 3/4 1-1/2 4-1/8 8
93171 1 1 1-3/4 4-1/4 8
Mill Dia. Shank Dia. EM218 Series ■ EXTRA LONG LENGTH Unit : Inch
Tolerance(inch) Tolerance
EDP No. Mill Shank Length Overall No. of
0~-.0012 0~-.0003 Diameter Diameter of Cut Length Flute
99666 1/4 1/4 1 2-3/4 6
99667 5/16 5/16 1-1/2 3-5/8 6
99668 3/8 3/8 1-3/4 4 6
99669 1/2 1/2 2-3/16 4-3/8 6
99670 5/8 5/8 2-5/8 5-1/8 6
99588 3/4 3/4 2-1/4 5 8
99589 3/4 3/4 3-1/4 6 8
99590 3/4 3/4 4-1/8 7 8
99591 1 1 4-1/8 7 8

Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
0~-.0012 0~-.0003

Enforced cutting edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○
864 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 865
