X-POWER X-POWER

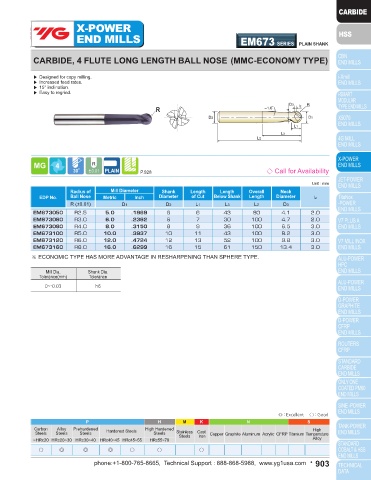

END MILLS EM669 SERIES PLAIN SHANK END MILLS EM673 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE (MMC-ECONOMY TYPE) CARBIDE, 4 FLUTE LONG LENGTH BALL NOSE (MMC-ECONOMY TYPE)

▶ Designed for copy milling. ▶ Designed for copy milling.
▶ Increased feed rates. ▶ Increased feed rates.
▶ 15° inclination. ▶ 15° inclination.
▶ Easy to regrind. ▶ Easy to regrind.

R R
↙ ↙

P.927 ◇ Call for Availability P.928 ◇ Call for Availability
Unit : mm Unit : mm
Radius of Mill Diameter Shank Length Length Overall Neck Radius of Mill Diameter Shank Length Length Overall Neck
EDP No. Ball Nose Metric Inch Diameter of Cut Below Shank Length Diameter Iz EDP No. Ball Nose Metric Inch Diameter of Cut Below Shank Length Diameter Iz
R (±0.01) D1 D2 L1 L3 L2 D3 R (±0.01) D1 D2 L1 L3 L2 D3
EM669030 R1.5 3.0 .1181 6 4 30 80 2.5 1.5 EM673050 R2.5 5.0 .1969 6 6 43 80 4.1 2.0
EM669040 R2.0 4.0 .1575 6 5 30 80 3.3 1.5 EM673060 R3.0 6.0 .2362 6 7 30 100 4.7 2.0
EM669050 R2.5 5.0 .1969 6 6 43 80 4.1 2.0 EM673080 R4.0 8.0 .3150 8 9 36 100 6.5 3.0
EM669060 R3.0 6.0 .2362 6 7 30 100 4.7 2.0 EM673100 R5.0 10.0 .3937 10 11 43 100 8.2 3.0
EM669080 R4.0 8.0 .3150 8 9 36 100 6.5 3.0 EM673120 R6.0 12.0 .4724 12 13 52 100 9.8 3.0
EM669100 R5.0 10.0 .3937 10 11 43 100 8.2 3.0 EM673160 R8.0 16.0 .6299 16 15 61 150 13.4 3.0
EM669120 R6.0 12.0 .4724 12 13 52 100 9.8 3.0 ※ ECONOMIC TYPE HAS MORE ADVANTAGE IN RESHARPENING THAN SPHERE TYPE.
EM669160 R8.0 16.0 .6299 16 15 61 150 13.4 3.0
※ ECONOMIC TYPE HAS MORE ADVANTAGE IN RESHARPENING THAN SPHERE TYPE. Mill Dia. Shank Dia.
Tolerance(mm) Tolerance
Mill Dia. Shank Dia. 0~-0.03 h6
Tolerance(mm) Tolerance
0~-0.03 h6

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Iron
Steels
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○
