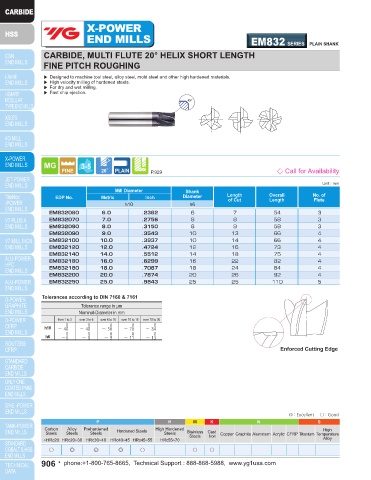

Page 906 - YG 2019

X-POWER X-POWER
END MILLS EM832 SERIES PLAIN SHANK END MILLS EM814 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE 20° HELIX SHORT LENGTH CARBIDE, MULTI FLUTE 20° HELIX LONG LENGTH
FINE PITCH ROUGHING FINE PITCH ROUGHING

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials. ▶Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
▶ High velocity milling of hardened steels. ▶High velocity milling of hardened steels.
▶ For dry and wet milling. ▶For dry and wet milling.
▶ Fast chip ejection. ▶Fast chip ejection.

P.929 ◇ Call for Availability P.929 ◇ Call for Availability
Unit : mm Unit : mm
Mill Diameter Shank Mill Diameter Shank
EDP No. Metric Inch Diameter Length Overall No. of EDP No. Metric Inch Diameter Length Overall No. of
of Cut
Length
Length
Flute
Flute
of Cut
h10 h6 h10 h6
EM832060 6.0 .2362 6 7 54 3 EM814060 6.0 .2362 6 16 57 3
EM832070 7.0 .2756 8 8 58 3 EM814070 7.0 .2756 8 16 63 3
EM832080 8.0 .3150 8 9 58 3 EM814080 8.0 .3150 8 16 63 3
EM832090 9.0 .3543 10 13 66 4 EM814090 9.0 .3543 10 19 72 4
EM832100 10.0 .3937 10 14 66 4 EM814100 10.0 .3937 10 22 72 4
EM832120 12.0 .4724 12 16 73 4 EM814120 12.0 .4724 12 26 83 4
EM832140 14.0 .5512 14 18 75 4 EM814140 14.0 .5512 14 26 83 4
EM832160 16.0 .6299 16 22 82 4 EM814901 14.0 .5512 16 26 83 4
EM832180 18.0 .7087 18 24 84 4 EM814160 16.0 .6299 16 32 92 4
EM832200 20.0 .7874 20 26 92 4 EM814180 18.0 .7087 18 32 92 4
EM832250 25.0 .9843 25 25 110 5 EM814200 20.0 .7874 20 38 104 4
EM814250 25.0 .9843 25 45 121 5
Tolerances according to DIN 7160 & 7161
Tolerance range in µm Tolerances according to DIN 7160 & 7161
Nominal-Diameter in mm Tolerance range in µm
from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30 Nominal-Diameter in mm
h10 — 40 0 — 48 0 — 58 0 — 70 0 — 84 0 from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30
0 0 0 0 0 h10 0 0 0 0 0
h6 — 6 — 8 — 9 — 11 — 13 — 40 — 48 — 58 — 70 — 84
0
0
h6 — 6 0 0 0 — 11 — 13
— 8
— 9

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○
906 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 907
