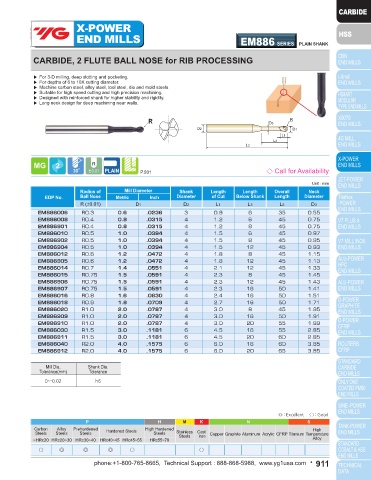

END MILLS EM883 SERIES PLAIN SHANK END MILLS EM886 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE for RIB PROCESSING CARBIDE, 2 FLUTE BALL NOSE for RIB PROCESSING

▶ For deep slotting & pocketing. ▶ For 3-D milling, deep slotting and pocketing.
▶ For depths of 6 to 10X cutting diameter. ▶ For depths of 6 to 10X cutting diameter.
▶ Machine carbon steel, alloy steel, tool steel, die and mold steels. ▶ Machine carbon steel, alloy steel, tool steel, die and mold steels.
▶ Suitable for high speed cutting and high precision machining. ▶ Suitable for high speed cutting and high precision machining.
▶ Designed with reinforced shank for higher stability and rigidity. ▶ Designed with reinforced shank for higher stability and rigidity.
▶ Long neck design for deep machining near walls. ▶ Long neck design for deep machining near walls.

R R
D3 ↙ D3
D2 D1 D2 D1
L1 L1
L3 L3
L2 L2

P.930 ◇ Call for Availability P.931 ◇ Call for Availability
Unit : mm Unit : mm
Mill Diameter Shank Length Length Overall Neck Radius of Mill Diameter Shank Length Length Overall Neck
EDP No. Metric Inch Diameter of Cut Below Shank Length Diameter EDP No. Ball Nose Metric Inch Diameter of Cut Below Shank Length Diameter
D1 D2 L1 L3 L2 D3 R (±0.01) D1 D2 L1 L3 L2 D3
EM883908 0.8 .0315 4 1.2 6 45 0.75 EM886006 R0.3 0.6 .0236 3 0.9 6 35 0.55
EM883909 0.8 .0315 4 1.2 8 45 0.75 EM886008 R0.4 0.8 .0315 4 1.2 6 45 0.75
EM883010 1.0 .0394 4 1.5 6 45 0.97 EM886901 R0.4 0.8 .0315 4 1.2 8 45 0.75
EM883912 1.0 .0394 4 1.5 8 45 0.95 EM886010 R0.5 1.0 .0394 4 1.5 6 45 0.97
EM883914 1.0 .0394 4 1.5 12 45 0.93 EM886902 R0.5 1.0 .0394 4 1.5 8 45 0.95
EM883915 1.2 .0472 4 1.8 8 45 1.15 EM886904 R0.5 1.0 .0394 4 1.5 12 45 0.93
EM883917 1.2 .0472 4 1.8 12 45 1.13 EM886012 R0.6 1.2 .0472 4 1.8 8 45 1.15
EM883920 1.4 .0551 4 2.1 12 45 1.33 EM886905 R0.6 1.2 .0472 4 1.8 12 45 1.13
EM883923 1.5 .0591 4 2.3 8 45 1.45 EM886014 R0.7 1.4 .0551 4 2.1 12 45 1.33
EM883924 1.5 .0591 4 2.3 10 45 1.45 EM886015 R0.75 1.5 .0591 4 2.3 8 45 1.45
EM883925 1.5 .0591 4 2.3 12 45 1.43 EM886906 R0.75 1.5 .0591 4 2.3 12 45 1.43
EM883927 1.5 .0591 4 2.3 16 50 1.41 EM886907 R0.75 1.5 .0591 4 2.3 16 50 1.41
EM883932 1.6 .0630 4 2.4 12 45 1.53 EM886016 R0.8 1.6 .0630 4 2.4 16 50 1.51
EM883946 1.8 .0709 4 2.7 12 45 1.73 EM886018 R0.9 1.8 .0709 4 2.7 16 50 1.71
EM883960 2.0 .0787 4 3.0 12 45 1.93 EM886020 R1.0 2.0 .0787 4 3.0 8 45 1.95
EM883962 2.0 .0787 4 3.0 16 50 1.91 EM886909 R1.0 2.0 .0787 4 3.0 16 50 1.91
EM883968 2.5 .0984 4 3.7 12 45 2.40 EM886910 R1.0 2.0 .0787 4 3.0 20 55 1.89
EM883970 2.5 .0984 4 3.7 16 55 2.40 EM886030 R1.5 3.0 .1181 6 4.5 16 55 2.85
EM883977 3.0 .1181 6 4.5 14 50 2.85 EM886911 R1.5 3.0 .1181 6 4.5 20 60 2.85
EM883979 3.0 .1181 6 4.5 18 55 2.85 EM886040 R2.0 4.0 .1575 6 6.0 16 60 3.85
EM886912 R2.0 4.0 .1575 6 6.0 20 65 3.85
Mill Dia. Shank Dia.
Tolerance(mm) Tolerance Mill Dia. Shank Dia.
Tolerance(mm) Tolerance
0~-0.015 h6
0~-0.02 h6

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Iron
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ○ ○
