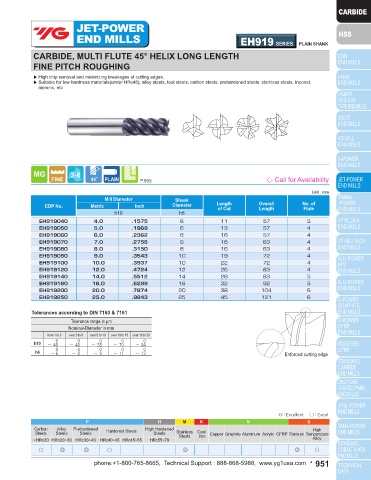

Page 951 - YG 2019

JET-POWER JET-POWER
END MILLS EH917 SERIES PLAIN SHANK END MILLS EH919 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE 45° HELIX SHORT LENGTH CARBIDE, MULTI FLUTE 45° HELIX LONG LENGTH
FINE PITCH ROUGHING FINE PITCH ROUGHING

▶ High chip removal and minimizing breakages of cutting edges. ▶ High chip removal and minimizing breakages of cutting edges.
▶ Suitable for low hardness materials(under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steels, Inconel, ▶ Suitable for low hardness materials(under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steels, Inconel,
nimonic, etc nimonic, etc

P.955 ◇ Call for Availability P.955 ◇ Call for Availability

Unit : mm Unit : mm
Mill Diameter Shank Mill Diameter Shank
EDP No. Metric Inch Diameter Length Overall No. of EDP No. Metric Inch Diameter Length Overall No. of
of Cut
Length
Flute
Length
of Cut
Flute
h10 h6 h10 h6
EH917060 6.0 .2362 6 7 54 4 EH919040 4.0 .1575 6 11 57 3
EH917080 8.0 .3150 8 9 58 4 EH919050 5.0 .1969 6 13 57 4
EH917100 10.0 .3937 10 14 66 4 EH919060 6.0 .2362 6 16 57 4
EH917120 12.0 .4724 12 16 73 4 EH919070 7.0 .2756 8 16 63 4
EH917160 16.0 .6299 16 22 82 5 EH919080 8.0 .3150 8 16 63 4
EH917200 20.0 .7874 20 26 92 6 EH919090 9.0 .3543 10 19 72 4
EH919100 10.0 .3937 10 22 72 4
Tolerances according to DIN 7160 & 7161 EH919120 12.0 .4724 12 26 83 4
EH919140 14.0 .5512 14 26 83 5
Tolerance range in µm
Nominal-Diameter in mm EH919160 16.0 .6299 16 32 92 5
EH919200 20.0 .7874 20 38 104 6
from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30 EH919250 25.0 .9843 25 45 121 6
h10 — 40 0 — 48 0 — 58 0 — 70 0 — 84 0
h6 6 0 0 0 0 0 Tolerances according to DIN 7160 & 7161
11
9
13
8
Enforced cutting edge
Tolerance range in µm
Nominal-Diameter in mm
from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30
h10 — 40 0 — 48 0 — 58 0 — 70 0 — 84 0
0
0
h6 — 6 0 0 0 — 11 — 13 Enforced cutting edge
— 8
— 9

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ○ ◎ ◎ ○ ○ ◎ ◎ ○ ◎ ◎ ○
