JET-POWER JET-POWER

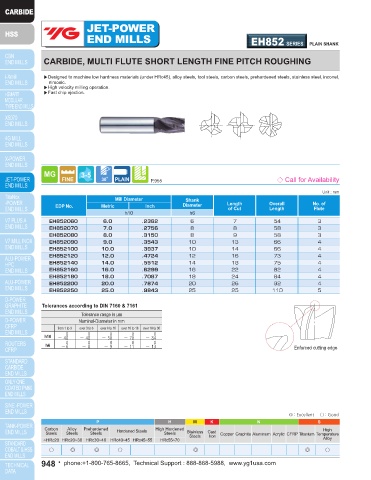

END MILLS EH852 SERIES PLAIN SHANK END MILLS EH831 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE SHORT LENGTH FINE PITCH ROUGHING CARBIDE, MULTI FLUTE LONG LENGTH FINE PITCH ROUGHING

▶Designed to machine low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel, ▶Designed to machine low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel,
nimonic. nimonic.
▶High velocity milling operation. ▶High velocity milling operation.
▶Fast chip ejection. ▶Fast chip ejection.

P.955 ◇ Call for Availability P.955 ◇ Call for Availability

Unit : mm Unit : mm
Mill Diameter Shank Mill Diameter Shank
EDP No. Metric Inch Diameter Length Overall No. of EDP No. Metric Inch Diameter Length Overall No. of
of Cut
of Cut
Length
Flute
Flute
Length
h10 h6 h10 h6
EH852060 6.0 .2362 6 7 54 3 EH831060 6.0 .2362 6 16 57 3
EH852070 7.0 .2756 8 8 58 3 EH831070 7.0 .2756 8 16 63 3
EH852080 8.0 .3150 8 9 58 3 EH831080 8.0 .3150 8 16 63 3
EH852090 9.0 .3543 10 13 66 4 EH831090 9.0 .3543 10 19 72 4
EH852100 10.0 .3937 10 14 66 4 EH831100 10.0 .3937 10 22 72 4
EH852120 12.0 .4724 12 16 73 4 EH831120 12.0 .4724 12 26 83 4
EH852140 14.0 .5512 14 18 75 4 EH831140 14.0 .5512 14 26 83 4
EH852160 16.0 .6299 16 22 82 4 EH831160 16.0 .6299 16 32 92 4
EH852180 18.0 .7087 18 24 84 4 EH831180 18.0 .7087 18 32 92 4
EH852200 20.0 .7874 20 26 92 4 EH831200 20.0 .7874 20 38 104 4
EH852250 25.0 .9843 25 25 110 5 EH831250 25.0 .9843 25 45 121 5
Tolerances according to DIN 7160 & 7161 Tolerances according to DIN 7160 & 7161
Tolerance range in µm Tolerance range in µm
Nominal-Diameter in mm Nominal-Diameter in mm
from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30 from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30
h10 — 40 0 — 48 0 — 58 0 — 70 0 — 84 0 h10 — 40 0 — 48 0 — 58 0 — 70 0 — 84 0
0
0
0
0
h6 — 6 0 0 0 — 11 — 13 Enforced cutting edge h6 — 6 0 0 0 — 11 — 13 Enforced cutting edge
— 8
— 9
— 8
— 9

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ○ ◎ ◎ ○ ○ ◎ ◎ ○ ◎ ◎ ○
