JET-POWER JET-POWER

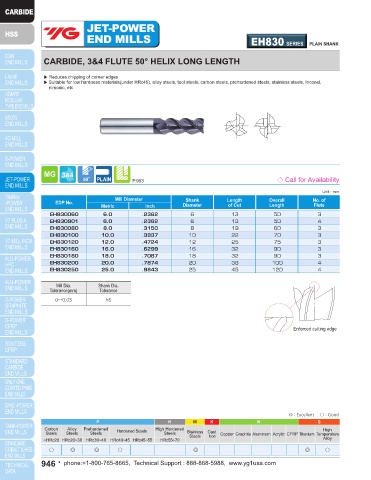

END MILLS EH830 SERIES PLAIN SHANK END MILLS EE515 SERIES FLAT SHANK

CARBIDE, 3&4 FLUTE 50° HELIX LONG LENGTH PREMIUM HSS-PM, 4&6 FLUTE SHORT LENGTH

▶ Reduces chipping of corner edges ▶Designed to machine low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel,
▶ Suitable for low hardness materials(under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steels, Inconel, nimonic, etc.
nimonic, etc ▶High velocity milling operation and good surface finishes.

P.953 ◇ Call for Availability P.954 ◇ Call for Availability

Unit : mm Unit : mm
Mill Diameter Shank Length Overall No. of Mill Diameter Shank Length Overall No. of
EDP No. EDP No.
Metric Inch Diameter of Cut Length Flute Metric Inch Diameter of Cut Length Flute
EH830060 6.0 .2362 6 13 50 3 EE515030 3.0 .1181 6 8 52 4
EH830901 6.0 .2362 6 13 50 4 EE515040 4.0 .1575 6 11 55 4
EH830080 8.0 .3150 8 19 60 3 EE515050 5.0 .1969 6 13 57 4
EH830100 10.0 .3937 10 22 70 3 EE515060 6.0 .2362 6 13 57 4
EH830120 12.0 .4724 12 25 75 3 EE515080 8.0 .3150 10 19 69 4
EH830160 16.0 .6299 16 32 90 3 EE515100 10.0 .3937 10 22 72 4
EH830180 18.0 .7087 18 32 90 3 EE515120 12.0 .4724 12 26 83 4
EH830200 20.0 .7874 20 38 100 4 EE515140 14.0 .5512 12 26 83 4
EH830250 25.0 .9843 25 45 120 4 EE515160 16.0 .6299 16 32 92 6
EE515180 18.0 .7087 16 32 92 6
Mill Dia. Shank Dia. EE515200 20.0 .7874 20 38 104 6
Tolerance(mm) Tolerance EE515250 25.0 .9843 25 45 121 6
0~-0.03 h6
Mill Dia. Shank Dia.
Tolerance(mm) Tolerance
0~+0.03 h6
Enforced cutting edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ○ ◎ ◎ ○ ○ ◎ ◎ ○ ◎ ◎ ○
