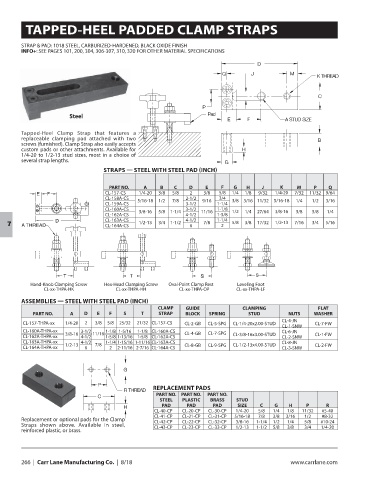

Page 268 - CarrLaneCatalog_2019ed-c.pdf
P. 268
TAPPED-HEEL PADDED CLAMP STRAPS
STRAP & PAD: 1018 STEEL, CARBURIZED-HARDENED, BLACK OXIDE FINISH
INFO+: SEE PAGES 101, 200, 304, 306-307, 310, 320 FOR OTHER MATERIAL SPECIFICATIONS
Steel
Tapped-Heel Clamp Strap that features a
replaceable clamping pad attached with two
screws (furnished). Clamp Strap also easily accepts
custom pads or other attachments. Available for
1/4-20 to 1/2-13 stud sizes, most in a choice of
several strap lengths.
STRAPS — STEEL WITH STEEL PAD (INCH)
PART NO. A B C D E F G H J K M P Q
E F CL-157-CS 1/4-20 3/8 5/8 2 3/8 5/8 1/4 1/8 9/32 1/4-20 7/32 11/32 9/64
CL-158A-CS 5/16-18 1/2 7/8 2-1/2 9/16 3/4 3/8 3/16 11/32 5/16-18 1/4 1/2 3/16
CL-159A-CS 3-1/2 1-1/4
CL-160A-CS 3/8-16 5/8 1-1/4 3-1/2 11/16 1-1/8 1/2 1/4 27/64 3/8-16 3/8 5/8 1/4
CL-162A-CS 4-1/2 1-5/8
D CL-163A-CS 1/2-13 3/4 1-1/2 4-1/2 7/8 1-1/4 5/8 3/8 17/32 1/2-13 7/16 3/4 5/16
A THREAD CL-164A-CS 6 2
7
T T S
Hand-Knob Clamping Screw Hex-Head Clamping Screw Oval-Point Clamp Rest Leveling Foot
CL-xx-THPA-HK CL-xx-THPA-HH CL-xx-THPA-OP CL-xx-THPA-LF
ASSEMBLIES — STEEL WITH STEEL PAD (INCH)
CLAMP GUIDE CLAMPING FLAT
PART NO. A D E F S T STRAP BLOCK SPRING STUD NUTS WASHER
CL-157-THPA-xx 1/4-20 2 3/8 5/8 25/32 21/32 CL-157-CS CL-2-GB CL-5-SPG CL-1/4-20x2.00-STUD CL-4-JN CL-7-FW
CL-1-SNW
CL-160A-THPA-xx 3-1/2 11/16 1-1/8 1-5/16 1-1/8 CL-160A-CS CL-4-GB CL-7-SPG CL-6-JN
CL-162A-THPA-xx 3/8-16 4-1/2 1-5/8 1-13/16 1-5/8 CL-162A-CS CL-3/8-16x3.00-STUD CL-2-SNW CL-1-FW
CL-163A-THPA-xx 4-1/2 7/8 1-1/4 1-15/16 1-11/16 CL-163A-CS CL-1/2-13x4.00-STUD CL-8-JN
CL-164A-THPA-xx 1/2-13 6 2 2-11/16 2-7/16 CL-164A-CS CL-8-GB CL-9-SPG CL-3-SNW CL-2-FW
REPLACEMENT PADS
PART NO. PART NO. PART NO.
STEEL PLASTIC BRASS STUD
PAD PAD PAD SIZE C G H P R
CL-40-CP CL-20-CP CL-30-CP 1/4-20 5/8 1/4 1/8 11/32 #5-40
CL-41-CP CL-21-CP CL-31-CP 5/16-18 7/8 3/8 3/16 1/2 #8-32
Replacement or optional pads for the Clamp CL-42-CP CL-22-CP CL-32-CP 3/8-16 1-1/4 1/2 1/4 5/8 #10-24
Straps shown above. Available in steel, CL-43-CP CL-23-CP CL-33-CP 1/2-13 1-1/2 5/8 3/8 3/4 1/4-20
reinforced plastic, or brass.
