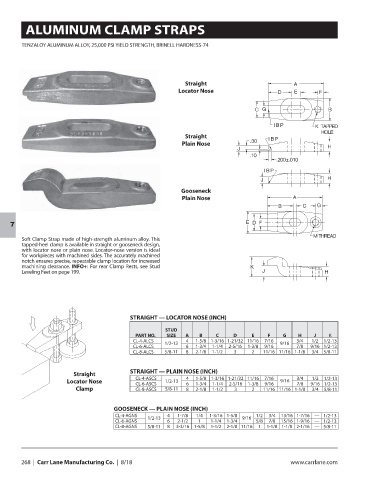

ALUMINUM CLAMP STRAPS

TENZALOY ALUMINUM ALLOY, 25,000 PSI YIELD STRENGTH, BRINELL HARDNESS-74

Straight
Locator Nose

Straight
Plain Nose

Gooseneck
Plain Nose

7
Soft Clamp Strap made of high-strength aluminum alloy. This
tapped-heel clamp is available in straight or gooseneck design,
with locator nose or plain nose. Locator-nose version is ideal
for workpieces with machined sides. The accurately machined
notch ensures precise, repeatable clamp location for increased
machining clearance. INFO+: For rear Clamp Rests, see Stud
Leveling Feet on page 199.

STRAIGHT — LOCATOR NOSE (INCH)

STUD
PART NO. SIZE A B C D E F G H J K
CL-4-ALCS 1/2-13 4 1-5/8 1-3/16 1-21/32 11/16 7/16 9/16 3/4 1/2 1/2-13
CL-6-ALCS 6 1-3/4 1-1/4 2-5/16 1-3/8 9/16 7/8 9/16 1/2-13
CL-8-ALCS 5/8-11 8 2-1/8 1-1/2 3 2 11/16 11/16 1-1/8 3/4 5/8-11

STRAIGHT — PLAIN NOSE (INCH)
Straight
CL-4-ASCS 4 1-5/8 1-3/16 1-21/32 11/16 7/16 3/4 1/2 1/2-13
Locator Nose 1/2-13 9/16
CL-6-ASCS 6 1-3/4 1-1/4 2-5/16 1-3/8 9/16 7/8 9/16 1/2-13
Clamp CL-8-ASCS 5/8-11 8 2-1/8 1-1/2 3 2 11/16 11/16 1-1/8 3/4 5/8-11

GOOSENECK — PLAIN NOSE (INCH)
CL-4-AGNS 1/2-13 4 1-7/8 1/4 1-3/16 1-5/8 9/16 1/2 3/4 13/16 1-7/16 — 1/2-13
CL-6-AGNS 6 2-1/2 1 1-1/4 1-3/4 5/8 7/8 15/16 1-9/16 — 1/2-13
CL-8-AGNS 5/8-11 8 3-3/16 1-5/8 1-1/2 2-1/8 11/16 1 1-1/8 1-1/8 2-1/16 — 5/8-11
