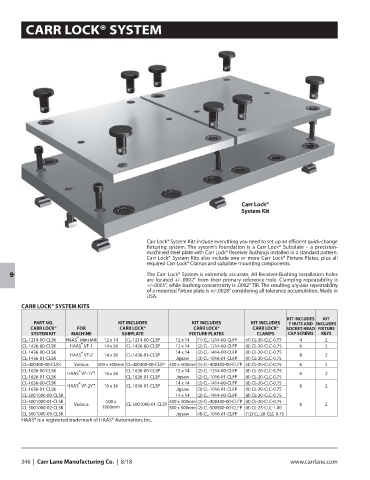

Page 348 - CarrLaneCatalog_2019ed-c.pdf

CARR LOCK® SYSTEM

Carr Lock®
System Kit

Carr Lock® System Kits include everything you need to set up an efficient quick-change
fixturing system. The system’s foundation is a Carr Lock® Subplate – a precision-
machined steel plate with Carr Lock® Receiver Bushings installed in a standard pattern.
Carr Lock® System Kits also include one or more Carr Lock® Fixture Plates, plus all
required Carr Lock® Clamps and subplate-mounting components.
The Carr Lock® System is extremely accurate. All Receiver-Bushing installation holes
9
are located +/-.0002" from their primary reference hole. Clamping repeatability is
+/-.0005", while bushing concentricity is .0002" TIR. The resulting x/y-axis repeatability
of a mounted fixture plate is +/-.0028" considering all tolerance accumulation. Made in
USA.
CARR LOCK® SYSTEM KITS

KIT INCLUDES KIT
PART NO. KIT INCLUDES KIT INCLUDES KIT INCLUDES T NUTS AND INCLUDES
CARR LOCK® FOR CARR LOCK® CARR LOCK® CARR LOCK® SOCKET-HEAD FIXTURE
SYSTEM KIT MACHINE SUBPLATE FIXTURE PLATES CLAMPS CAP SCREWS KEYS
®
CL-1214-00-CLSK HAAS Mini Mill 12 x 14 CL-1214-00-CLSP 12 x 14 (1) CL-1214-00-CLFP (4) CL-20-CLC-0.75 4 2
®
CL-1426-00-CLSK HAAS VF-1 14 x 26 CL-1426-00-CLSP 12 x 14 (2) CL-1214-00-CLFP (8) CL-20-CLC-0.75 6 2
CL-1436-00-CLSK ® 14 x 14 (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75
HAAS VF-2 14 x 36 CL-1436-01-CLSP 8 2
CL-1436-01-CLSK Jigsaw (3) CL-1016-01-CLFP (9) CL-20-CLC-0.75
CL-400400-00-CLSK Various 400 x 400mm CL-400400-00-CLSP 400 x 400mm (1) CL-400400-00-CLFP (4) CL-20-CLC-0.75 6 2
CL-1626-00-CLSK HAAS VF-1YT 16 x 26 CL-1626-00-CLSP 12 x 14 (2) CL-1214-00-CLFP (8) CL-20-CLC-0.75 6 2
®
CL-1626-01-CLSK CL-1626-01-CLSP Jigsaw (2) CL-1016-01-CLFP (6) CL-20-CLC-0.75
CL-1636-00-CLSK ® 14 x 14 (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75
HAAS VF-2YT 16 x 36 CL-1636-01-CLSP 8 2
CL-1636-01-CLSK Jigsaw (3) CL-1016-01-CLFP (9) CL-20-CLC-0.75
CL-5001000-00-CLSK 14 x 14 (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75
CL-5001000-01-CLSK 500 x 400 x 400mm (2) CL-400400-00-CLFP (8) CL-20-CLC-0.75
Various CL-5001000-01-CLSP 8 2
CL-5001000-02-CLSK 1000mm 500 x 500mm (2) CL-500500-00-CLFP (8) CL-25-CLC-1.00
CL-5001000-03-CLSK Jigsaw (4) CL-1016-01-CLFP (12) CL-20-CLC-0.75
HAAS® is a registered trademark of HAAS® Automation, Inc.
