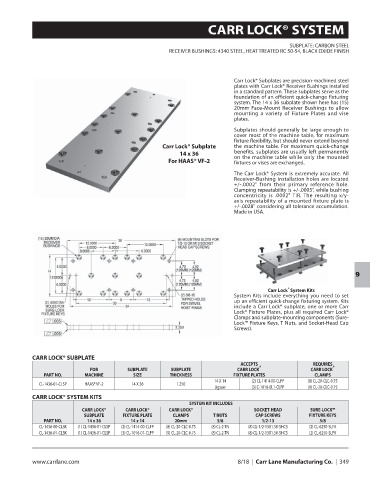

CARR LOCK® SYSTEM

SUBPLATE: CARBON STEEL
RECEIVER BUSHINGS: 4340 STEEL, HEAT TREATED RC 50-54, BLACK OXIDE FINISH

Carr Lock® Subplates are precision-machined steel
plates with Carr Lock® Receiver Bushings installed
in a standard pattern. These subplates serve as the
foundation of an efficient quick-change fixturing
system. The 14 x 36 subplate shown here has (15)
20mm Face-Mount Receiver Bushings to allow
mounting a variety of Fixture Plates and vise
plates.
Subplates should generally be large enough to
cover most of the machine table, for maximum
fixture flexibility, but should never extend beyond
Carr Lock® Subplate the machine table. For maximum quick-change
14 x 36 benefits, subplates are usually left permanently
on the machine table while only the mounted
For HAAS® VF-2 fixtures or vises are exchanged.
The Carr Lock® System is extremely accurate. All
Receiver-Bushing installation holes are located
+/-.0002" from their primary reference hole.
Clamping repeatability is +/-.0005", while bushing
concentricity is .0002" TIR. The resulting x/y-
axis repeatability of a mounted fixture plate is
+/-.0028" considering all tolerance accumulation.
Made in USA.

9
®
Carr Lock System Kits
System Kits include everything you need to set
up an efficient quick-change fixturing system. Kits
include a Carr Lock® subplate, one or more Carr

Lock® Fixture Plates, plus all required Carr Lock®
Clamps and subplate-mounting components (Sure-
Lock™ Fixture Keys, T Nuts, and Socket-Head Cap
Screws).

CARR LOCK® SUBPLATE
ACCEPTS REQUIRES
®
®
FOR SUBPLATE SUBPLATE CARR LOCK CARR LOCK
PART NO. MACHINE SIZE THICKNESS FIXTURE PLATES CLAMPS
14 X 14 (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75
CL-1436-01-CLSP HAAS® VF-2 14 X 36 1.250
Jigsaw (3) C-1016-0L1-CLFP (9) CL-20-CLC-0.75
CARR LOCK® SYSTEM KITS
SYSTEM KIT INCLUDES
CARR LOCK® CARR LOCK® CARR LOCK® SOCKET-HEAD SURE-LOCK™
SUBPLATE FIXTURE PLATE CLAMPS T NUTS CAP SCREWS FIXTURE KEYS
PART NO. 14 x 36 14 x 14 20mm 5/8 1/2-13 5/8
CL-1436-00-CLSK (1) CL-1436-01-CLSP (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75 (8) CL-2-TN (8) CL-1/2-13X1.50-SHCS (2) CL-6250-SLFK
CL-1436-01-CLSK (1) CL-1436-01-CLSP (3) CL-1016-01-CLFP (9) CL-20-CLC-0.75 (8) CL-2-TN (8) CL-1/2-13X1.50-SHCS (2) CL-6250-SLFK
