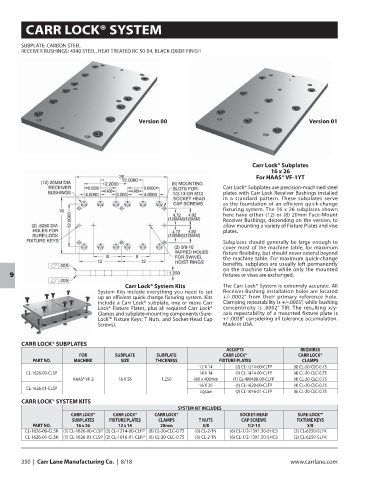

Page 352 - CarrLaneCatalog_2019ed-c.pdf

CARR LOCK® SYSTEM

SUBPLATE: CARBON STEEL
RECEIVER BUSHINGS: 4340 STEEL, HEAT TREATED RC 50-54, BLACK OXIDE FINISH

Version 00 Version 01

Carr Lock® Subplates
16 x 26
For HAAS® VF-1YT
Carr Lock® Subplates are precision-machined steel
plates with Carr Lock Receiver Bushings installed
in a standard pattern. These subplates serve
as the foundation of an efficient quick-change
fixturing system. The 16 x 26 subplates shown
here have either (12) or (8) 20mm Face-Mount
Receiver Bushings, depending on the version, to
allow mounting a variety of Fixture Plates and vise
plates.
Subplates should generally be large enough to
cover most of the machine table, for maximum
fixture flexibility, but should never extend beyond
the machine table. For maximum quick-change
benefits, subplates are usually left permanently
on the machine table while only the mounted
fixtures or vises are exchanged.
9
Carr Lock® System Kits The Carr Lock® System is extremely accurate. All
System Kits include everything you need to set Receiver-Bushing installation holes are located
up an efficient quick-change fixturing system. Kits +/-.0002" from their primary reference hole.
include a Carr Lock® subplate, one or more Carr Clamping repeatability is +/-.0005", while bushing
Lock® Fixture Plates, plus all required Carr Lock® concentricity is .0002" TIR. The resulting x/y-
Clamps and subplate-mounting components (Sure- axis repeatability of a mounted fixture plate is
Lock™ Fixture Keys, T Nuts, and Socket-Head Cap +/-.0028" considering all tolerance accumulation.
Screws). Made in USA.

CARR LOCK® SUBPLATES
ACCEPTS REQUIRES
FOR SUBPLATE SUBPLATE CARR LOCK® CARR LOCK®
PART NO. MACHINE SIZE THICKNESS FIXTURE PLATES CLAMPS
12 X 14 (2) CL-1214-00-CLFP (8) CL-20-CLC-0.75
CL-1626-00-CLSP 14 X 14 (1) CL-1414-00-CLFP (4) CL-20-CLC-0.75
HAAS® VF-2 16 X 26 1.250 400 x 400mm (1) CL-400400-00-CLFP (4) CL-20-CLC-0.75
16 X 20 (1) CL-1620-00-CLFP (4) CL-20-CLC-0.75
CL-1626-01-CLSP
Jigsaw (2) CL-1016-01-CLFP (6) CL-20-CLC-0.75
CARR LOCK® SYSTEM KITS
SYSTEM KIT INCLUDES
CARR LOCK® CARR LOCK® CARR LOCK® SOCKET-HEAD SURE-LOCK™
SUBPLATES FIXTURE PLATES CLAMPS T NUTS CAP SCREWS FIXTURE KEYS
PART NO. 16 x 26 12 x 14 20mm 5/8 1/2-13 5/8
CL-1626-00-CLSK (1) CL-1626-00-CLSP (2) CL-1214-00-CLFP (8) CL-20-CLC-0.75 (6) CL-2-TN (6) CL-1/2-13X1.50-SHCS (2) CL-6250-SLFK
CL-1626-01-CLSK (1) CL-1626-01-CLSP (2) CL-1016-01-CLFP (6) CL-20-CLC-0.75 (6) CL-2-TN (6) CL-1/2-13X1.50-SHCS (2) CL-6250-SLFK
