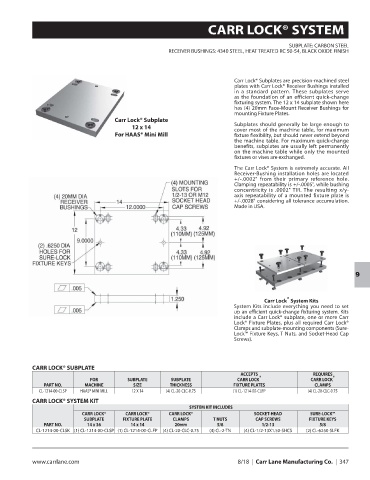

CARR LOCK® SYSTEM

SUBPLATE: CARBON STEEL
RECEIVER BUSHINGS: 4340 STEEL, HEAT TREATED RC 50-54, BLACK OXIDE FINISH

Carr Lock® Subplates are precision-machined steel
plates with Carr Lock® Receiver Bushings installed
in a standard pattern. These subplates serve
as the foundation of an efficient quick-change
fixturing system. The 12 x 14 subplate shown here
has (4) 20mm Face-Mount Receiver Bushings for
mounting Fixture Plates.

Carr Lock® Subplate
Subplates should generally be large enough to
12 x 14
cover most of the machine table, for maximum
For HAAS® Mini Mill fixture flexibility, but should never extend beyond
the machine table. For maximum quick-change
benefits, subplates are usually left permanently
on the machine table while only the mounted
fixtures or vises are exchanged.
The Carr Lock® System is extremely accurate. All
Receiver-Bushing installation holes are located
+/-.0002" from their primary reference hole.
Clamping repeatability is +/-.0005", while bushing
concentricity is .0002" TIR. The resulting x/y-
axis repeatability of a mounted fixture plate is
+/-.0028" considering all tolerance accumulation.
Made in USA.

9

®
Carr Lock System Kits
System Kits include everything you need to set
up an efficient quick-change fixturing system. Kits
include a Carr Lock® subplate, one or more Carr
Lock® Fixture Plates, plus all required Carr Lock®
Clamps and subplate-mounting components (Sure-
Lock™ Fixture Keys, T Nuts, and Socket-Head Cap
Screws).

CARR LOCK® SUBPLATE
ACCEPTS REQUIRES
®
®
FOR SUBPLATE SUBPLATE CARR LOCK CARR LOCK
PART NO. MACHINE SIZE THICKNESS FIXTURE PLATES CLAMPS
CL-1214-00-CLSP HAAS® MINI MILL 12 X 14 (4) CL-20-CLC-0.75 (1) CL-1214-00-CLFP (4) CL-20-CLC-0.75
CARR LOCK® SYSTEM KIT
SYSTEM KIT INCLUDES
CARR LOCK® CARR LOCK® CARR LOCK® SOCKET-HEAD SURE-LOCK™
SUBPLATE FIXTURE PLATE CLAMPS T NUTS CAP SCREWS FIXTURE KEYS
PART NO. 14 x 36 14 x 14 20mm 5/8 1/2-13 5/8
CL-1214-00-CLSK (1) CL-1214-00-CLSP (1) CL-1214-00-CLFP (4) CL-20-CLC-0.75 (4) CL-2-TN (4) CL-1/2-13X1.50-SHCS (2) CL-6250-SLFK
