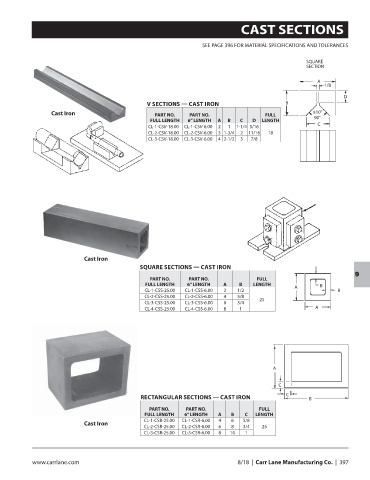

Page 399 - CarrLaneCatalog_2019ed-c.pdf

CAST SECTIONS

SEE PAGE 396 FOR MATERIAL SPECIFICATIONS AND TOLERANCES

SQUARE
SECTION

A
1/8

D
V SECTIONS — CAST IRON B
Cast Iron PART NO. PART NO. FULL ±10”
FULL LENGTH 6” LENGTH A B C D LENGTH 90°
CL-1-CSV-18.00 CL-1-CSV-6.00 2 1 1-1/4 5/16 C
CL-2-CSV-18.00 CL-2-CSV-6.00 3 1-3/4 2 11/16 18
CL-3-CSV-18.00 CL-3-CSV-6.00 4 2-1/2 3 7/8

Cast Iron
SQUARE SECTIONS — CAST IRON

9
PART NO. PART NO. FULL
FULL LENGTH 6” LENGTH A B LENGTH B
A
CL-1-CSS-25.00 CL-1-CSS-6.00 3 1/2 B
CL-2-CSS-25.00 CL-2-CSS-6.00 4 5/8 25
CL-3-CSS-25.00 CL-3-CSS-6.00 6 3/4
CL-4-CSS-25.00 CL-4-CSS-6.00 8 1 A

A

C
C
RECTANGULAR SECTIONS — CAST IRON B
PART NO. PART NO. FULL
FULL LENGTH 6” LENGTH A B C LENGTH
CL-1-CSR-25.00 CL-1-CSR-6.00 4 6 5/8
Cast Iron
CL-2-CSR-25.00 CL-2-CSR-6.00 6 8 3/4 25
CL-3-CSR-25.00 CL-3-CSR-6.00 8 10 1

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 397
