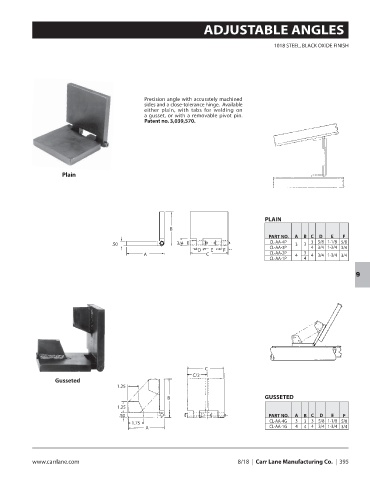

ADJUSTABLE ANGLES

1018 STEEL, BLACK OXIDE FINISH

Precision angle with accurately machined
sides and a close-tolerance hinge. Available
either plain, with tabs for welding on
a gusset, or with a removable pivot pin.
Patent no. 3,039,570.

Plain

PLAIN
B
PART NO. A B C D E F
.50 3/4 CL-AA-4P 3 3 3 5/8 1-1/8 5/8
D E F CL-AA-3P 4 3/4 1-3/4 3/4
A C CL-AA-2P 4 3 4 3/4 1-3/4 3/4
CL-AA-1P 4

9

C
C/2
Gusseted
1.25

B GUSSETED
1.25
.50 PART NO. A B C D E F
1.75 CL-AA-4G 3 3 3 5/8 1-1/8 5/8
A CL-AA-1G 4 4 4 3/4 1-3/4 3/4

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 395
