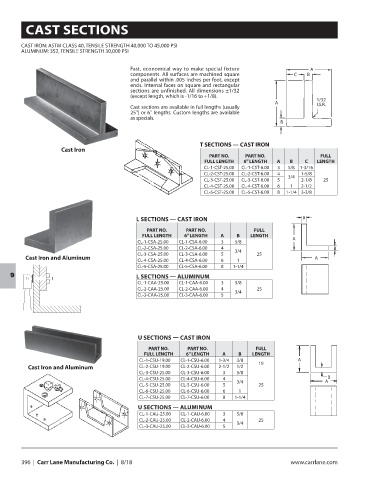

Page 398 - CarrLaneCatalog_2019ed-c.pdf

CAST SECTIONS

CAST IRON: ASTM CLASS 40, TENSILE STRENGTH 40,000 TO 45,000 PSI
ALUMINUM: 352, TENSILE STRENGTH 30,000 PSI

Fast, economical way to make special fixture A
components. All surfaces are machined square C B
and parallel within .005 inches per foot, except
ends. Internal faces on square and rectangular
sections are unfinished. All dimensions ±1/32
(except length, which is -1/16 to +1/8).
1/32
A I.S.R.
Cast sections are available in full lengths (usually
25") or 6" lengths. Custom lengths are available
as specials.
B

T SECTIONS — CAST IRON
Cast Iron
PART NO. PART NO. FULL
FULL LENGTH 6” LENGTH A B C LENGTH
CL-1-CST-25.00 CL-1-CST-6.00 3 5/8 1-3/16
CL-2-CST-25.00 CL-2-CST-6.00 4 3/4 1-5/8
CL-3-CST-25.00 CL-3-CST-6.00 5 2-1/8 25
CL-4-CST-25.00 CL-4-CST-6.00 6 1 2-1/2
CL-5-CST-25.00 CL-5-CST-6.00 8 1-1/4 3-3/8

L SECTIONS — CAST IRON B
PART NO. PART NO. FULL
FULL LENGTH 6” LENGTH A B LENGTH
CL-1-CSA-25.00 CL-1-CSA-6.00 3 5/8 A
CL-2-CSA-25.00 CL-2-CSA-6.00 4 3/4 B
CL-3-CSA-25.00 CL-3-CSA-6.00 5 25
Cast Iron and Aluminum CL-4-CSA-25.00 CL-4-CSA-6.00 6 1 A
CL-5-CSA-25.00 CL-5-CSA-6.00 8 1-1/4
L SECTIONS — ALUMINUM
9
CL-1-CAA-25.00 CL-1-CAA-6.00 3 5/8
CL-2-CAA-25.00 CL-2-CAA-6.00 4 25
3/4
CL-3-CAA-25.00 CL-3-CAA-6.00 5

U SECTIONS — CAST IRON
PART NO. PART NO. FULL
FULL LENGTH 6” LENGTH A B LENGTH
CL-1-CSU-19.00 CL-1-CSU-6.00 1-3/4 3/8 19 A
Cast Iron and Aluminum CL-2-CSU-19.00 CL-2-CSU-6.00 2-1/2 1/2
CL-3-CSU-25.00 CL-3-CSU-6.00 3 5/8
B
CL-4-CSU-25.00 CL-4-CSU-6.00 4
3/4 A
CL-5-CSU-25.00 CL-5-CSU-6.00 5 25
CL-6-CSU-25.00 CL-6-CSU-6.00 6 1
CL-7-CSU-25.00 CL-7-CSU-6.00 8 1-1/4
U SECTIONS — ALUMINUM
CL-1-CAU-25.00 CL-1-CAU-6.00 3 5/8
CL-2-CAU-25.00 CL-2-CAU-6.00 4 25
3/4
CL-3-CAU-25.00 CL-3-CAU-6.00 5
