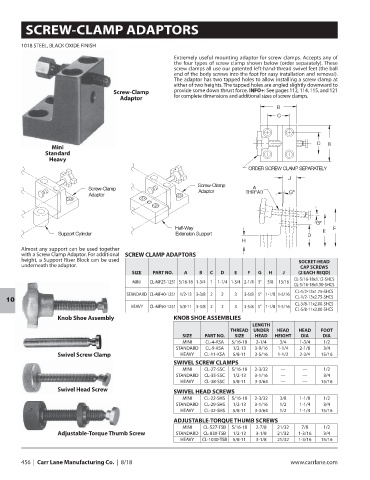

SCREW-CLAMP ADAPTORS

1018 STEEL, BLACK OXIDE FINISH
Extremely useful mounting adaptor for screw clamps. Accepts any of
the four types of screw clamp shown below (order separately). These
screw clamps all use our patented left-hand-thread swivel feet (the ball
end of the body screws into the foot for easy installation and removal).
The adaptor has two tapped holes to allow installing a screw clamp at
either of two heights. The tapped holes are angled slightly downward to
Screw-Clamp provide some down thrust force. INFO+: See pages 112, 114, 115, and 121
Adaptor for complete dimensions and additional sizes of screw clamps.

Mini
Standard
Heavy

Almost any support can be used together
with a Screw Clamp Adaptor. For additional SCREW CLAMP ADAPTORS
height, a Support Riser Block can be used SOCKET-HEAD
underneath the adaptor. CAP SCREWS
SIZE PART NO. A B C D E F G H J (2 EACH REQD)
CL-5/16-18x1.12-SHCS
MINI CL-MF25-1251 5/16-18 1-3/4 1 1-1/4 1-3/4 2-1/4 3° 5/8 13/16
CL-5/16-18x1.50-SHCS
CL-1/2-13x1.75-SHCS
STANDARD CL-MF40-1251 1/2-13 3-3/8 2 2 3 3-5/8 5° 1-1/8 1-5/16
CL-1/2-13x2.75-SHCS
10
CL-5/8-11x2.00-SHCS
HEAVY CL-MF50-1251 5/8-11 3-3/8 2 2 3 3-5/8 5° 1-1/8 1-5/16
CL-5/8-11x3.00-SHCS
Knob Shoe Assembly KNOB SHOE ASSEMBLIES
LENGTH
THREAD UNDER HEAD HEAD FOOT
SIZE PART NO. SIZE HEAD HEIGHT DIA DIA
MINI CL-4-KSA 5/16-18 2-1/4 3/4 1-3/4 1/2
STANDARD CL-9-KSA 1/2-13 3-9/16 1-1/4 2-1/8 3/4
Swivel Screw Clamp HEAVY CL-11-KSA 5/8-11 3-5/16 1-1/2 2-3/4 15/16
SWIVEL SCREW CLAMPS
MINI CL-27-SSC 5/16-18 2-3/32 — — 1/2
STANDARD CL-35-SSC 1/2-13 3-1/16 — — 3/4
HEAVY CL-38-SSC 5/8-11 3-3/64 — — 15/16
Swivel Head Screw
SWIVEL HEAD SCREWS
MINI CL-22-SHS 5/16-18 2-3/32 3/8 1-1/8 1/2
STANDARD CL-29-SHS 1/2-13 3-1/16 1/2 1-1/4 3/4
HEAVY CL-32-SHS 5/8-11 3-3/64 1/2 1-1/4 15/16
ADJUSTABLE-TORQUE THUMB SCREWS
MINI CL-527-TSB 5/16-18 2-7/8 21/32 7/8 1/2
Adjustable-Torque Thumb Screw STANDARD CL-830-TSB 1/2-13 3-1/8 21/32 1-3/16 3/4
HEAVY CL-1030-TSB 5/8-11 3-1/8 21/32 1-3/16 15/16
