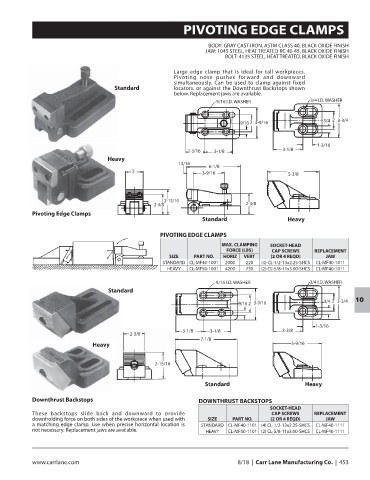

PIVOTING EDGE CLAMPS

BODY: GRAY CAST IRON, ASTM CLASS 40, BLACK OXIDE FINISH
JAW: 1045 STEEL, HEAT TREATED RC 40-45, BLACK OXIDE FINISH
BOLT: 4135 STEEL, HEAT TREATED, BLACK OXIDE FINISH

Large edge clamp that is ideal for tall workpieces.
Pivoting nose pushes forward and downward
simultaneously. Can be used to clamp against fixed
Standard locators, or against the Downthrust Backstops shown
below. Replacement jaws are available.
9/16 I.D. WASHER 3/4 I.D. WASHER

9/16 2 3-9/16 3/4 2 3-3/4

1-3/16
2-3/16 3-1/8 3-1/8
Heavy
13/16
6-1/8
2 3-9/16 5-3/8

2-15/16
2-3/8 2-3/8
Pivoting Edge Clamps
Standard Heavy

PIVOTING EDGE CLAMPS
MAX. CLAMPING SOCKET-HEAD
FORCE (LBS) CAP SCREWS REPLACEMENT
SIZE PART NO. HORIZ VERT (2 OR 4 REQD) JAW
STANDARD CL-MF40-1001 2000 220 (4) CL-1/2-13x2.25-SHCS CL-MF40-1011
HEAVY CL-MF50-1001 4200 730 (2) CL-5/8-11x3.00-SHCS CL-MF40-1011

9/16 I.D. WASHER 3/4 I.D. WASHER
Standard

9/16 2 3-9/16 3/4 2 3-3/4 10

1-3/16
3-1/8 3-1/8 3-3/8
2-3/8
7-1/8
Heavy 5-9/16

2-15/16

Standard Heavy

Downthrust Backstops DOWNTHRUST BACKSTOPS
SOCKET-HEAD
These backstops slide back and downward to provide CAP SCREWS REPLACEMENT
downholding force on both sides of the workpiece when used with SIZE PART NO. (2 OR 4 REQD) JAW
a matching edge clamp. Use when precise horizontal location is STANDARD CL-MF40-1101 (4) CL-1/2-13x2.25-SHCS CL-MF40-1111
not necessary. Replacement jaws are available. HEAVY CL-MF50-1101 (2) CL-5/8-11x3.00-SHCS CL-MF40-1111

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 453
