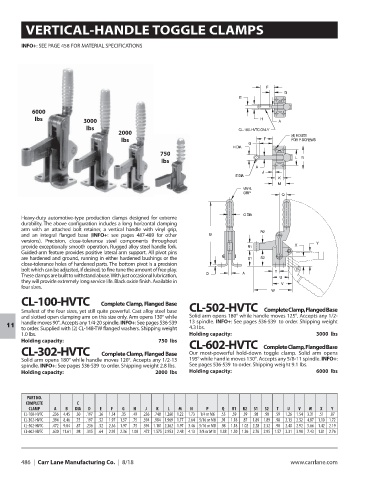

VERTICAL-HANDLE TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

6000
lbs 3000
lbs
2000
lbs

750
lbs

Heavy-duty automotive-type production clamps designed for extreme
durability. The above configuration includes a long horizontal clamping
arm with an attached bolt retainer, a vertical handle with vinyl grip,
and an integral flanged base (INFO+: see pages 487-489 for other
versions). Precision, close-tolerance steel components throughout
provide exceptionally smooth operation. Rugged alloy steel handle fork.
Guided-arm feature provides positive lateral arm support. All pivot pins
are hardened and ground, running in either hardened bushings or the
close-tolerance holes of hardened parts. The bottom pivot is a precision
bolt which can be adjusted, if desired, to fine tune the amount of free play.
These clamps are built to withstand abuse. With just occasional lubrication,
they will provide extremely long service life. Black oxide finish. Available in
four sizes.

CL-100-HVTC Complete Clamp, Flanged Base
Smallest of the four sizes, yet still quite powerful. Cast alloy steel base CL-502-HVTC Complete Clamp, Flanged Base
and slotted open clamping arm on this size only. Arm opens 130° while Solid arm opens 180° while handle moves 125°. Accepts any 1/2-
handle moves 90°. Accepts any 1/4-20 spindle. INFO+: See pages 536-539 13 spindle. INFO+: See pages 536-539 to order. Shipping weight
to order. Supplied with (2) CL-148-TW flanged washers. Shipping weight
11 4.3 lbs.
1.0 lbs. Holding capacity: 3000 lbs
Holding capacity: 750 lbs
CL-602-HVTC Complete Clamp, Flanged Base
CL-302-HVTC Complete Clamp, Flanged Base Our most-powerful hold-down toggle clamp. Solid arm opens
Solid arm opens 180° while handle moves 120°. Accepts any 1/2-13 195° while handle moves 130°. Accepts any 5/8-11 spindle. INFO+:
spindle. INFO+: See pages 536-539 to order. Shipping weight 2.8 lbs. See pages 536-539 to order. Shipping weight 9.1 lbs.
Holding capacity: 2000 lbs Holding capacity: 6000 lbs

PART NO.
COMPLETE C
CLAMP A B DIA D E F G H J K L M N P Q R1 R2 S1 S2 T U V W X Y
CL-100-HVTC .236 4.45 .50 .197 .26 1.54 .35 .49 .236 .748 1.260 1.22 1.73 1/4 or M6 .55 .59 .59 .98 .98 .59 1.26 1.54 3.31 .51 .87
CL-302-HVTC .394 8.46 .75 .197 .52 1.97 1.57 .75 .394 .984 1.969 1.77 2.64 5/16 or M8 .91 1.18 .87 1.89 1.89 .98 2.13 2.52 4.87 1.10 1.72
CL-502-HVTC .472 9.84 .87 .236 .52 2.36 1.97 .75 .394 1.181 2.362 1.97 3.46 5/16 or M8 .98 1.18 1.02 2.28 2.32 .98 2.40 2.92 5.66 1.42 2.19
CL-602-HVTC .630 11.61 .98 .315 .64 2.95 2.36 1.00 .472 1.575 2.953 2.48 4.13 3/8 or M10 1.38 1.50 1.26 2.76 2.95 1.57 3.31 3.98 7.43 1.81 2.76
