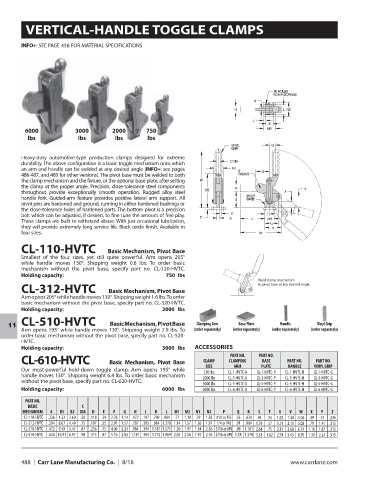

VERTICAL-HANDLE TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

6000 3000 2000 750
lbs lbs lbs lbs

Heavy-duty automotive-type production clamps designed for extreme
durability. The above configuration is a basic toggle mechanism onto which
an arm and handle can be welded at any desired angle (INFO+: see pages
486-487, and 489 for other versions). The pivot base must be welded to both
the clamp mechanism and the fixture, or the optional base plate, after setting
the clamp at the proper angle. Precision, close-tolerance steel components
throughout provide exceptionally smooth operation. Rugged alloy steel
handle fork. Guided-arm feature provides positive lateral arm support. All
pivot pins are hardened and ground, running in either hardened bushings or
the close-tolerance holes of hardened parts. The bottom pivot is a precision
bolt which can be adjusted, if desired, to fine tune the amount of free play.
These clamps are built to withstand abuse. With just occasional lubrication,
they will provide extremely long service life. Black oxide finish. Available in
four sizes.

CL-110-HVTC Basic Mechanism, Pivot Base
Smallest of the four sizes, yet still quite powerful. Arm opens 205°
while handle moves 130°. Shipping weight 0.6 lbs. To order basic
mechanism without the pivot base, specify part no. CL-120-HVTC.
Holding capacity: 750 lbs
Weld clamp mechanism
to pivot base at any desired angle.
CL-312-HVTC Basic Mechanism, Pivot Base
Arm opens 205° while handle moves 130°. Shipping weight 1.6 lbs. To order
basic mechanism without the pivot base, specify part no. CL-320-HVTC.
Holding capacity: 2000 lbs

CL-510-HVTC Basic Mechanism, Pivot Base Clamping Arm Base Plate Handle Vinyl Grip
Arm opens 195° while handle moves 130°. Shipping weight 2.9 lbs. To (order separately) (order separately) (order separately) (order separately)
11
order basic mechanism without the pivot base, specify part no. CL-520-
HVTC.
Holding capacity: 3000 lbs ACCESSORIES
PART NO. PART NO.
CL-610-HVTC Basic Mechanism, Pivot Base CLAMP CLAMPING BASE PART NO. PART NO.
SIZE ARM PLATE HANDLE VINYL GRIP
Our most-powerful hold-down toggle clamp. Arm opens 195° while 750 lbs CL-1-HVTC-A CL-1-HVTC-P CL-1-HVTC-H CL-1-HVTC-G
handle moves 130°. Shipping weight 6.4 lbs. To order basic mechanism 2000 lbs CL-3-HVTC-A CL-3-HVTC-P CL-3-HVTC-H CL-3-HVTC-G
without the pivot base, specify part no. CL-620-HVTC.
3000 lbs CL-5-HVTC-A CL-5-HVTC-P CL-5-HVTC-H CL-5-HVTC-G
Holding capacity: 6000 lbs 6000 lbs CL-6-HVTC-A CL-6-HVTC-P CL-6-HVTC-H CL-6-HVTC-G
PART NO.
BASIC C
MECHANISM A B1 B2 DIA D E F G H J K L M1 M2 N1 N2 P Q R S T U V W X Y Z
CL-110-HVTC .236 4.33 2.60 .50 .118 .39 2.76 1.14 .472 .197 .709 .984 .71 1.10 .79 1.38 #10 or M5 .55 .630 .94 .35 1.02 1.30 4.06 .39 .75 .236
CL-312-HVTC .394 8.07 4.49 .75 .197 .55 2.97 1.57 .787 .295 .984 1.378 1.14 1.57 1.26 1.97 1/4 or M6 .91 .984 1.79 .57 1.71 2.11 5.08 .79 1.41 .315
CL-510-HVTC .472 9.49 5.47 .87 .236 .75 4.06 2.24 .984 .394 1.181 1.575 1.50 1.97 1.54 2.36 5/16 or M8 .98 1.181 2.64 .75 2.17 2.68 6.74 1.10 1.87 .315
CL-610-HVTC .630 10.91 6.97 .98 .315 .87 5.16 2.83 1.181 .394 1.772 1.969 2.05 2.56 1.97 2.76 5/16 or M8 1.38 1.378 3.33 1.02 2.74 3.43 8.59 1.30 2.24 .315

488 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
