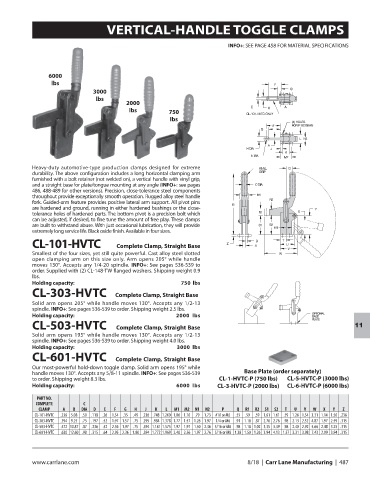

VERTICAL-HANDLE TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

6000
lbs
3000
lbs
2000
lbs 750
lbs

Heavy-duty automotive-type production clamps designed for extreme
durability. The above configuration includes a long horizontal clamping arm
furnished with a bolt retainer (not welded on), a vertical handle with vinyl grip,
and a straight base for plate/tongue mounting at any angle (INFO+: see pages
486, 488-489 for other versions). Precision, close-tolerance steel components
throughout provide exceptionally smooth operation. Rugged alloy steel handle
fork. Guided-arm feature provides positive lateral arm support. All pivot pins
are hardened and ground, running in either hardened bushings or the close-
tolerance holes of hardened parts. The bottom pivot is a precision bolt which
can be adjusted, if desired, to fine tune the amount of free play. These clamps
are built to withstand abuse. With just occasional lubrication, they will provide
extremely long service life. Black oxide finish. Available in four sizes.

CL-101-HVTC Complete Clamp, Straight Base
Smallest of the four sizes, yet still quite powerful. Cast alloy steel slotted
open clamping arm on this size only. Arm opens 205° while handle
moves 130°. Accepts any 1/4-20 spindle. INFO+: See pages 536-539 to
order. Supplied with (2) CL-148-TW flanged washers. Shipping weight 0.9
lbs.
Holding capacity: 750 lbs
CL-303-HVTC Complete Clamp, Straight Base
Solid arm opens 205° while handle moves 130°. Accepts any 1/2-13
spindle. INFO+: See pages 536-539 to order. Shipping weight 2.5 lbs.
Holding capacity: 2000 lbs

CL-503-HVTC Complete Clamp, Straight Base 11
Solid arm opens 195° while handle moves 130°. Accepts any 1/2-13
spindle. INFO+: See pages 536-539 to order. Shipping weight 4.0 lbs.
Holding capacity: 3000 lbs

CL-601-HVTC Complete Clamp, Straight Base
Our most-powerful hold-down toggle clamp. Solid arm opens 195° while
handle moves 130°. Accepts any 5/8-11 spindle. INFO+: See pages 536-539 Base Plate (order separately)
to order. Shipping weight 8.3 lbs. CL-1-HVTC-P (750 lbs) CL-5-HVTC-P (3000 lbs)
Holding capacity: 6000 lbs CL-3-HVTC-P (2000 lbs) CL-6-HVTC-P (6000 lbs)

PART NO.
COMPLETE C
CLAMP A B DIA D E F G H J K L M1 M2 N1 N2 P Q R1 R2 S1 S2 T U V W X Y Z
CL-101-HVTC .236 5.08 .50 .118 .26 1.54 .35 .49 .236 .748 1.260 1.06 1.10 .79 1.73 #10 or M5 .55 .59 .59 1.61 1.61 .59 1.26 1.54 3.31 1.14 1.50 .236
CL-303-HVTC .394 9.25 .75 .197 .52 1.97 1.57 .75 .295 .984 1.378 1.77 1.57 1.26 1.97 1/4 or M6 .91 1.18 .87 2.76 2.76 .98 2.13 2.52 4.87 1.97 2.59 .315
CL-503-HVTC .472 10.87 .87 .236 .52 2.36 1.97 .75 .394 1.181 1.575 1.97 1.97 1.50 2.36 5/16 or M8 .98 1.18 1.02 3.35 3.39 .98 2.40 2.92 5.66 2.48 3.25 .315
CL-601-HVTC .630 12.60 .98 .315 .64 2.95 2.36 1.00 .394 1.772 1.969 2.48 2.56 1.97 2.76 5/16 or M8 1.38 1.50 1.26 3.94 4.13 1.57 3.31 3.98 7.43 2.99 3.94 .315
