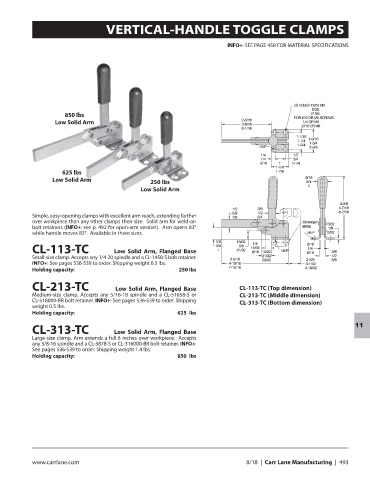

VERTICAL-HANDLE TOGGLE CLAMPS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
850 lbs
Low Solid Arm
625 lbs
Low Solid Arm
250 lbs
Low Solid Arm
Simple, easy-opening clamps with excellent arm reach, extending farther
over workpiece than any other clamps their size. Solid arm for weld-on
bolt retainers (INFO+: see p. 492 for open-arm version). Arm opens 83°
while handle moves 83°. Available in three sizes.
CL-113-TC Low Solid Arm, Flanged Base
Small-size clamp. Accepts any 1/4-20 spindle and a CL-1458-S bolt retainer.
INFO+: See pages 536-539 to order. Shipping weight 0.3 lbs.
Holding capacity: 250 lbs
CL-213-TC Low Solid Arm, Flanged Base CL-113-TC (Top dimension)
Medium-size clamp. Accepts any 5/16-18 spindle and a CL-51658-S or CL-213-TC (Middle dimension)
CL-518000-BR bolt retainer. INFO+: See pages 536-539 to order. Shipping CL-313-TC (Bottom dimension)
weight 0.5 lbs.
Holding capacity: 625 lbs
11
CL-313-TC Low Solid Arm, Flanged Base
Large-size clamp. Arm extends a full 6 inches over workpiece. Accepts
any 3/8-16 spindle and a CL-3878-S or CL-316000-BR bolt retainer. INFO+:
See pages 536-539 to order. Shipping weight 1.4 lbs.
Holding capacity: 850 lbs
