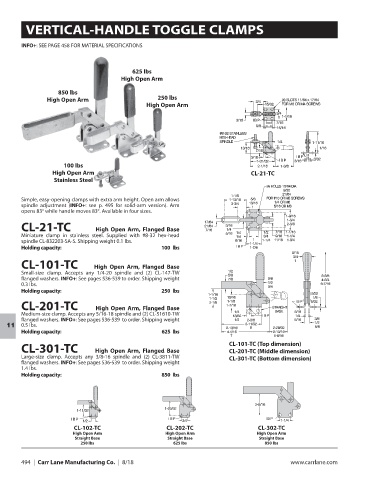

VERTICAL-HANDLE TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

625 lbs
High Open Arm
850 lbs
High Open Arm 250 lbs
High Open Arm

100 lbs
High Open Arm CL-21-TC
Stainless Steel

Simple, easy-opening clamps with extra arm height. Open arm allows
spindle adjustment (INFO+: see p. 495 for solid-arm version). Arm
opens 83° while handle moves 83°. Available in four sizes.

CL-21-TC High Open Arm, Flanged Base
Miniature clamp in stainless steel. Supplied with #8-32 hex-head
spindle CL-832203-SA-S. Shipping weight 0.1 lbs.
Holding capacity: 100 lbs

CL-101-TC High Open Arm, Flanged Base
Small-size clamp. Accepts any 1/4-20 spindle and (2) CL-147-TW
flanged washers. INFO+: See pages 536-539 to order. Shipping weight
0.3 lbs.
Holding capacity: 250 lbs

CL-201-TC High Open Arm, Flanged Base
Medium-size clamp. Accepts any 5/16-18 spindle and (2) CL-51610-TW
flanged washers. INFO+: See pages 536-539 to order. Shipping weight
0.5 lbs.
11
Holding capacity: 625 lbs
CL-101-TC (Top dimension)
CL-301-TC High Open Arm, Flanged Base CL-201-TC (Middle dimension)
Large-size clamp. Accepts any 3/8-16 spindle and (2) CL-3811-TW CL-301-TC (Bottom dimension)
flanged washers. INFO+: See pages 536-539 to order. Shipping weight
1.4 lbs.
Holding capacity: 850 lbs

CL-102-TC CL-202-TC CL-302-TC
High Open Arm High Open Arm High Open Arm
Straight Base Straight Base Straight Base
250 lbs 625 lbs 850 lbs

494 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
