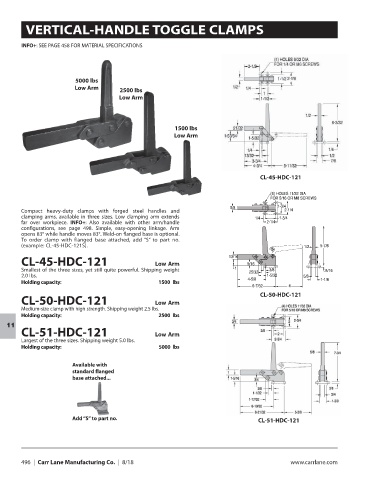

Page 498 - CarrLaneCatalog_2019ed-c.pdf

VERTICAL-HANDLE TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

5000 lbs
Low Arm
2500 lbs
Low Arm

1500 lbs
Low Arm

CL-45-HDC-121

(4) HOLES 11/32 DIA
FOR 5/16 OR M8 SCREWS
5/8 1-3/4
Compact heavy-duty clamps with forged steel handles and 2-1/4
clamping arms, available in three sizes. Low clamping arm extends 1/4 1-3/4
far over workpiece. INFO+: Also available with other arm/handle 2-1/4
configurations, see page 498. Simple, easy-opening linkage. Arm
opens 83° while handle moves 83°. Weld-on flanged base is optional.
To order clamp with flanged base attached, add “S” to part no.
(example: CL-45-HDC-121S). 1/2 5-7/8
13/16
CL-45-HDC-121 Low Arm 9/16
Smallest of the three sizes, yet still quite powerful. Shipping weight 1 25/32 3/8 5/16
2.0 lbs. 1-5/32 5/8
4-5/8 1-1/8
Holding capacity: 1500 lbs
6-7/32 4
CL-50-HDC-121
CL-50-HDC-121 Low Arm
Medium-size clamp with high strength. Shipping weight 2.5 lbs.
Holding capacity: 2500 lbs

11
CL-51-HDC-121 Low Arm
Largest of the three sizes. Shipping weight 5.0 lbs.
Holding capacity: 5000 lbs

Available with
standard flanged
base attached...

Add “S” to part no. CL-51-HDC-121
