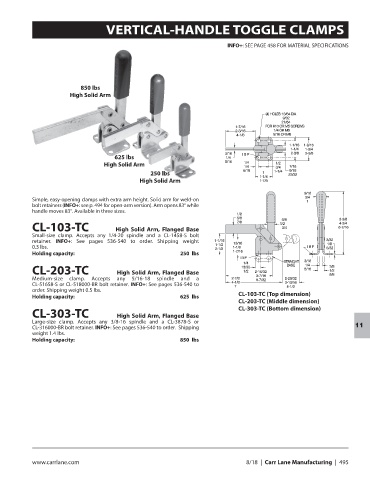

VERTICAL-HANDLE TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

850 lbs
High Solid Arm

625 lbs
High Solid Arm
250 lbs
High Solid Arm

Simple, easy-opening clamps with extra arm height. Solid arm for weld-on
bolt retainers (INFO+: see p. 494 for open-arm version). Arm opens 83° while
handle moves 83°. Available in three sizes.

CL-103-TC High Solid Arm, Flanged Base
Small-size clamp. Accepts any 1/4-20 spindle and a CL-1458-S bolt
retainer. INFO+: See pages 536-540 to order. Shipping weight
0.3 lbs.
Holding capacity: 250 lbs

CL-203-TC High Solid Arm, Flanged Base
Medium-size clamp. Accepts any 5/16-18 spindle and a
CL-51658-S or CL-518000-BR bolt retainer. INFO+: See pages 536-540 to
order. Shipping weight 0.5 lbs.
Holding capacity: 625 lbs CL-103-TC (Top dimension)
CL-203-TC (Middle dimension)
CL-303-TC (Bottom dimension)
CL-303-TC High Solid Arm, Flanged Base
Large-size clamp. Accepts any 3/8-16 spindle and a CL-3878-S or
CL-316000-BR bolt retainer. INFO+: See pages 536-540 to order. Shipping 11
weight 1.4 lbs.
Holding capacity: 850 lbs
