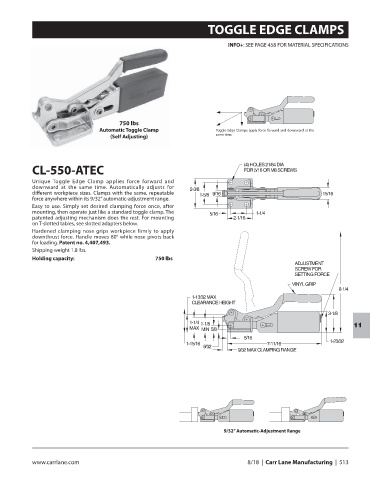

Page 515 - CarrLaneCatalog_2019ed-c.pdf

TOGGLE EDGE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

750 lbs
Automatic Toggle Clamp Toggle Edge Clamps apply force forward and downward at the
(Self Adjusting) same time.

(4) HOLES 21/64 DIA
CL-550-ATEC FOR 5/16 OR M8 SCREWS
Unique Toggle Edge Clamp applies force forward and
downward at the same time. Automatically adjusts for 2-3/8
different workpiece sizes. Clamps with the same, repeatable 1-5/8 9/16 15/16
force anywhere within its 9/32” automatic-adjustment range.
Easy to use. Simply set desired clamping force once, after
mounting, then operate just like a standard toggle clamp. The 5/16 1-1/4
patented adjusting mechanism does the rest. For mounting 2-1/16
on T-slotted tables, see slotted adapters below.
Hardened clamping nose grips workpiece firmly to apply
downthrust force. Handle moves 80° while nose pivots back
for loading. Patent no. 4,407,493.
Shipping weight 1.8 lbs.
Holding capacity: 750 lbs
ADJUSTMENT
SCREW FOR
SETTING FORCE
VINYL GRIP
8-1/4
1-13/32 MAX
CLEARANCE HEIGHT
3-1/8
1-1/4 1-1/8
MAX MIN 5/8 11
5/16
1-23/32
1-15/16 7-11/16
9/32
9/32 MAX CLAMPING RANGE

9/32” Automatic-Adjustment Range
