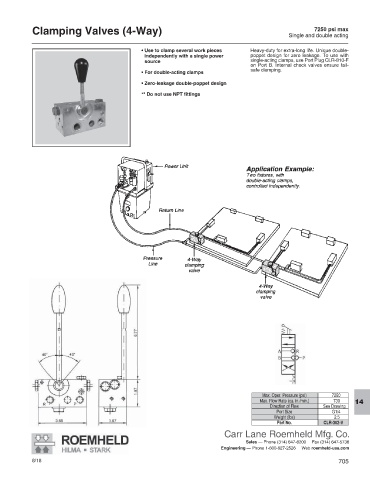

Page 707 - CarrLaneCatalog_2019ed-c.pdf
P. 707
Clamping Valves (4-Way) 7250 psi max
Single and double acting
• Use to clamp several work pieces Heavy-duty for extra-long life. Unique double-
independently with a single power poppet design for zero leakage. To use with
source single-acting clamps, use Port Plug CLR-810-F
on Port B. Internal check valves ensure fail-
safe clamping.
• For double-acting clamps
• Zero-leakage double-poppet design
** Do not use NPT fittings
Max. Oper. Pressure (psi) 7250
Max. Flow Rate (cu. in./min.) 730
14
Direction of Flow See Drawing
Port Size G1/4
Weight (lbs) 2.5
Part No. CLR-302-V
