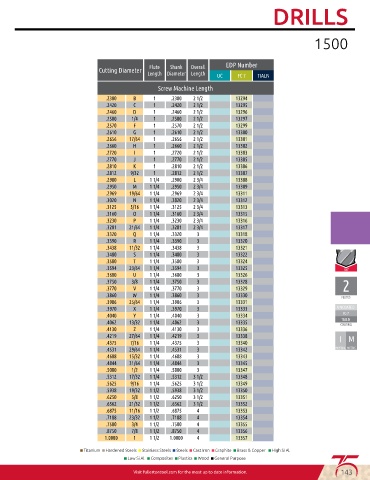

Page 145 - 75th-Online-Anniversary-Catalog

DRILLS

1500

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC FC 7 TIALN
Screw Machine Length

.2380 B 1 .2380 2 1/2 13294
.2420 C 1 .2420 2 1/2 13295
.2460 D 1 .2460 2 1/2 13296
.2500 1/4 1 .2500 2 1/2 13297
.2570 F 1 .2570 2 1/2 13299
.2610 G 1 .2610 2 1/2 13300
.2656 17/64 1 .2656 2 1/2 13301
.2660 H 1 .2660 2 1/2 13302
.2720 I 1 .2720 2 1/2 13303
.2770 J 1 .2770 2 1/2 13305
.2810 K 1 .2810 2 1/2 13306
.2812 9/32 1 .2812 2 1/2 13307
.2900 L 1 1/4 .2900 2 3/4 13308
.2950 M 1 1/4 .2950 2 3/4 13309
.2969 19/64 1 1/4 .2969 2 3/4 13311
.3020 N 1 1/4 .3020 2 3/4 13312
.3125 5/16 1 1/4 .3125 2 3/4 13313
.3160 O 1 1/4 .3160 2 3/4 13315
.3230 P 1 1/4 .3230 2 3/4 13316
.3281 21/64 1 1/4 .3281 2 3/4 13317
.3320 Q 1 1/4 .3320 3 13318
.3390 R 1 1/4 .3390 3 13320
.3438 11/32 1 1/4 .3438 3 13321
.3480 S 1 1/4 .3480 3 13322
.3580 T 1 1/4 .3580 3 13324
.3594 23/64 1 1/4 .3594 3 13325
.3680 U 1 1/4 .3680 3 13326
.3750 3/8 1 1/4 .3750 3 13328
.3770 V 1 1/4 .3770 3 13329
.3860 W 1 1/4 .3860 3 13330
.3906 25/64 1 1/4 .3906 3 13331
.3970 X 1 1/4 .3970 3 13333 UNCOATED
.4040 Y 1 1/4 .4040 3 13334 FC-7
.4062 13/32 1 1/4 .4062 3 13335 TIALN
.4130 Z 1 1/4 .4130 3 13336
.4219 27/64 1 1/4 .4219 3 13338 I M
.4375 7/16 1 1/4 .4375 3 13340
.4531 29/64 1 1/4 .4531 3 13342 IMPERIAL METRIC
.4688 15/32 1 1/4 .4688 3 13343
.4844 31/64 1 1/4 .4844 3 13345
.5000 1/2 1 1/4 .5000 3 13347
.5312 17/32 1 1/4 .5312 3 1/2 13348
.5625 9/16 1 1/4 .5625 3 1/2 13349
.5938 19/32 1 1/2 .5938 3 1/2 13350
.6250 5/8 1 1/2 .6250 3 1/2 13351
.6562 21/32 1 1/2 .6562 3 1/2 13352
.6875 11/16 1 1/2 .6875 4 13353
.7188 23/32 1 1/2 .7188 4 13354
.7500 3/4 1 1/2 .7500 4 13355
.8750 7/8 1 1/2 .8750 4 13356
1.0000 1 1 1/2 1.0000 4 13357
■ Titanium ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose
